Question: page 3 1 7 , 7 ( d ) For each of the following circuits, complete the timing diagram for the state of each flip

page

317, 7 (

)

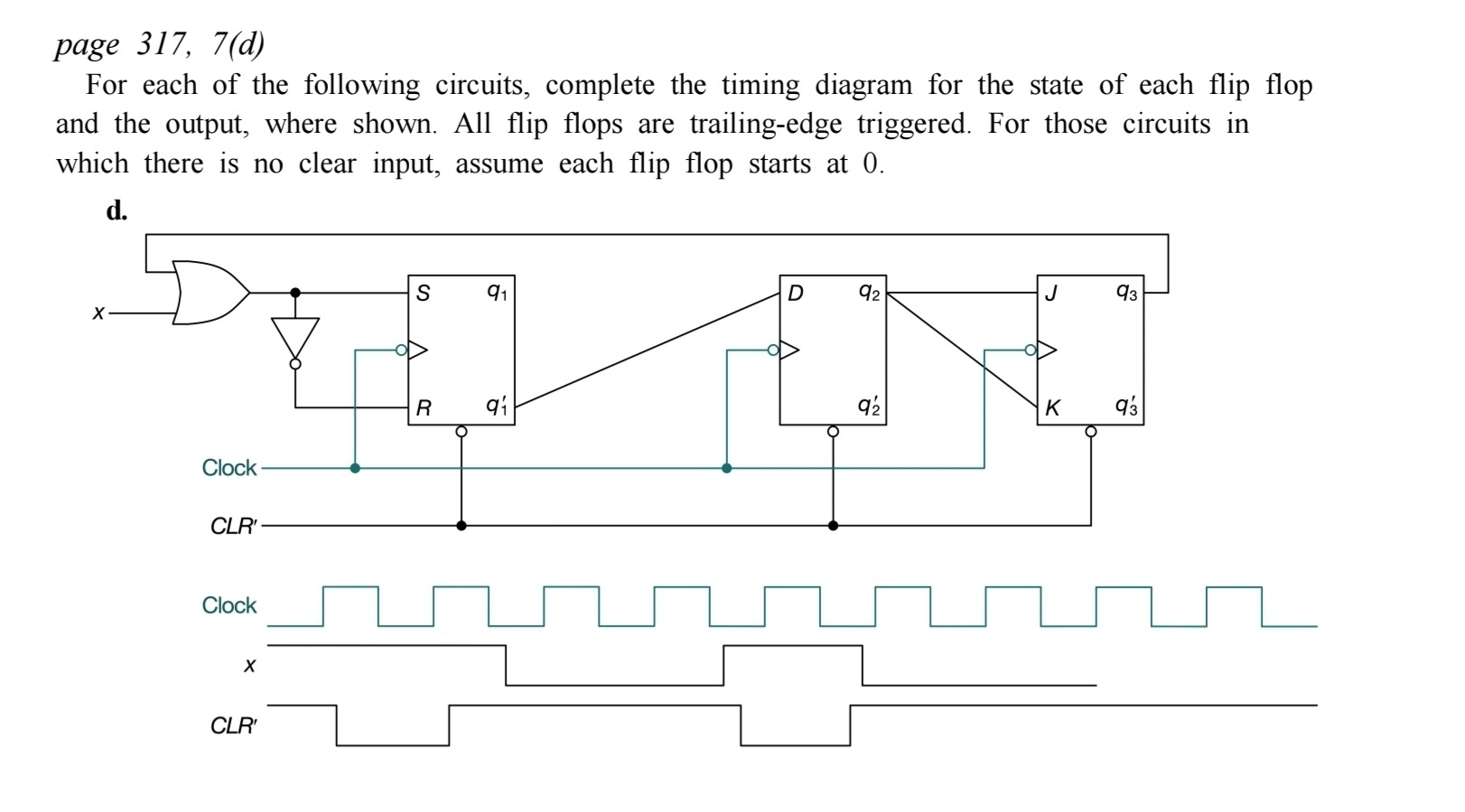

For each of the following circuits, complete the timing diagram for the state of each flip flop and the output, where shown. All flip flops are trailing

-

edge triggered. For those circuits in which there is no clear input, assume each flip flop starts at

0 .

.

please draw the time diagram accurately

page 3 1 7 , 7 ( d ) For each of the following

Step by Step Solution
