Page Problem 1: Consider the electrical circuit below, where the switch is thrown at t-0. Using...
Fantastic news! We've Found the answer you've been seeking!
Question:
Transcribed Image Text:

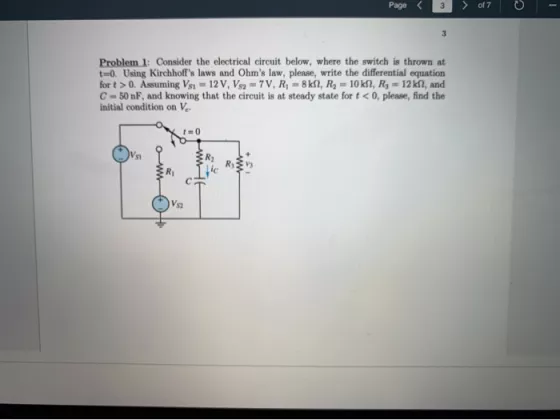

Page Problem 1: Consider the electrical circuit below, where the switch is thrown at t-0. Using Kirchhoff's laws and Ohm's law, please, write the differential equation for t >0. Assuming Vs - 12 V, Va- 7V, R, - 8 kfl, R, = 10 kfl, R, = 12kl, and C- 50 nF, and knowing that the circuit is at steady state for t<0, please, find the initial condition on V Va Page Problem 1: Consider the electrical circuit below, where the switch is thrown at t-0. Using Kirchhoff's laws and Ohm's law, please, write the differential equation for t >0. Assuming Vs - 12 V, Va- 7V, R, - 8 kfl, R, = 10 kfl, R, = 12kl, and C- 50 nF, and knowing that the circuit is at steady state for t<0, please, find the initial condition on V Va
Expert Answer:
Answer rating: 100% (QA)
Suiteh is et VsI 12k2 VcCo is Same as Source Yoltage VecoJ12... View the full answer
