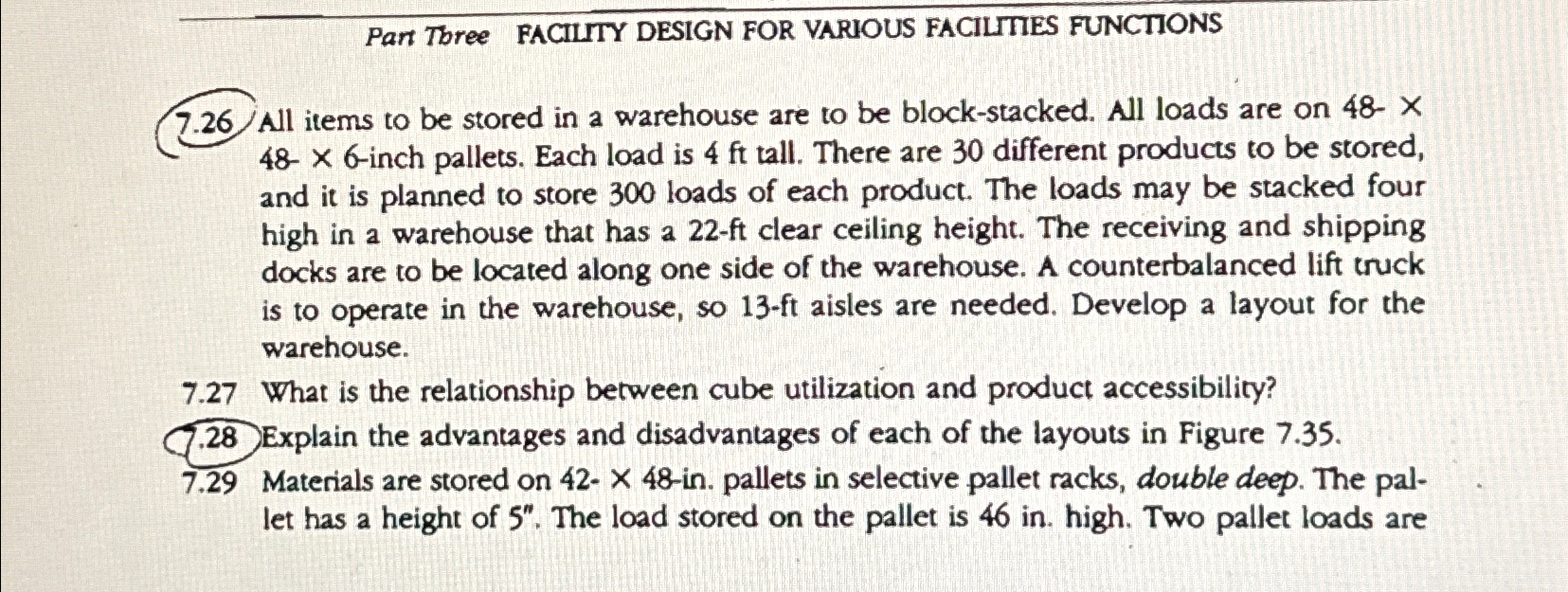

Pan Tbree FACIIITY DESIGN FOR VARIOUS FACILITIES FUNCTIONS

$7\mathrm{.}26.$ All items to be stored in a warehouse are to be block$-$stacked. All loads are on $48-x48-6-$inch pallets. Each load is $4ft$ tall. There are $30$ different products to be stored, and it is planned to store $300$ loads of each product. The loads may be stacked four high in a warehouse that has a $22-ft$ clear ceiling height. The receiving and shipping docks are to be located along one side of the warehouse. A counterbalanced lift truck is to operate in the warehouse, so $13-$ft aisles are needed. Develop a layout for the warehouse.

$7\mathrm{.}27$ What is the relationship between cube utilization and product accessibility?

$7\mathrm{.}28$ Explain the advantages and disadvantages of each of the layouts in Figure $7\mathrm{.}35.$

$7\mathrm{.}29$ Materials are stored on $42-48-$in$.$ pallets in selective pallet racks, double deep. The pallet has a height of $5^{\text{'}\text{'}}.$ The load stored on the pallet is $46$ in$.$ high. Two pallet loads are
