Part 2: Use the single cycle model to answer the following questions:

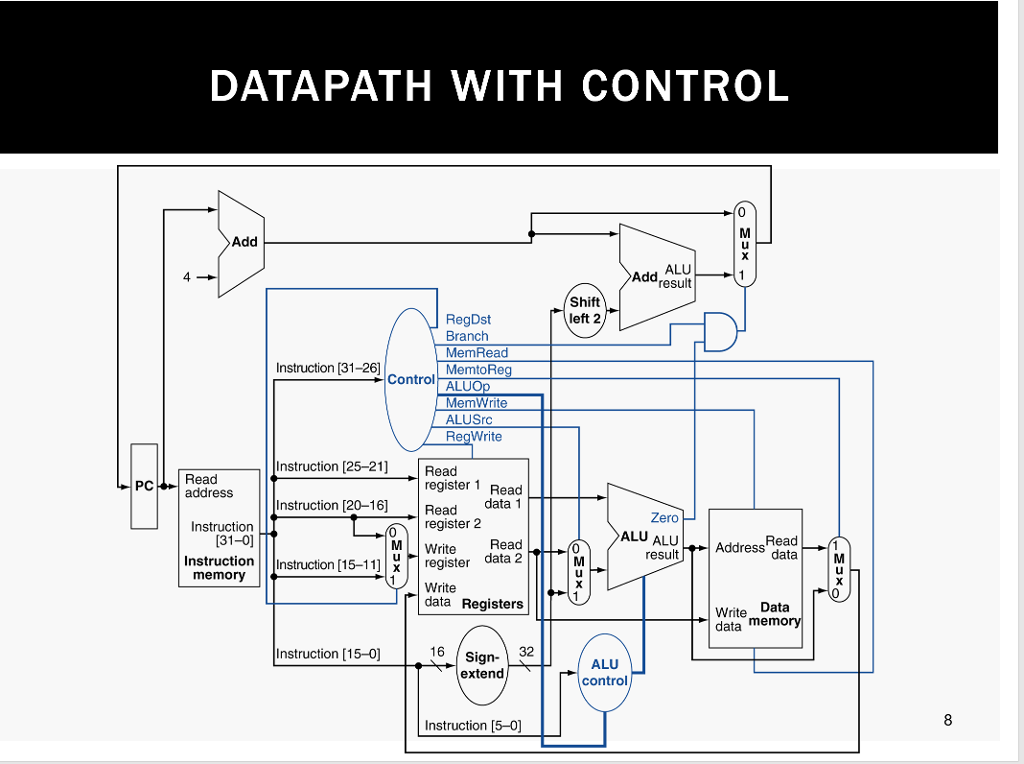

2.1 Consider a variant inc_l of the lw (load word) instruction. inc_l increments the base/index register after loading a word from memory. The inc_l can be represented by the following pair of instructions: lw $rs, L($rt) addi $rt, $rt, 1 Show why it is impossible to change the single-cycle datapath (see slide 8 of the Single Cycle Control lecture slides) in order to implement the inc_l instruction without altering the register file.
