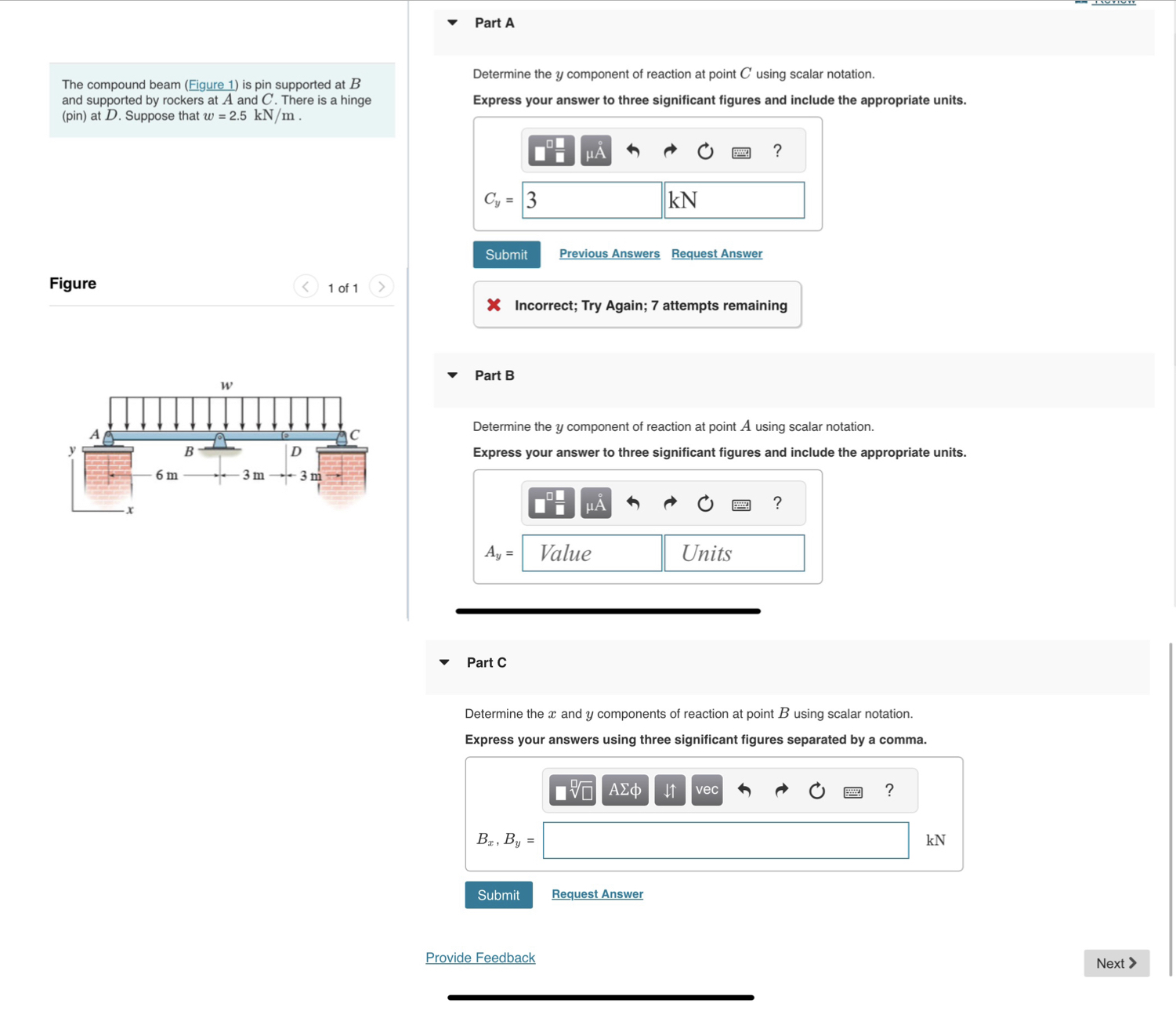

The compound beam $($Figure $1)$ is pin supported at $B$ and supported by rockers at A and $C.$ There is a hinge $($pin$)$ at $D.$ Suppose that $w=2\mathrm{.}5k\frac{N}{m}.$

Figure

$1$ of $1$

Determine the $y$ component of reaction at point $C$ using scalar notation.

Express your answer to three significant figures and include the appropriate units.

$C_y=$

Request Answer

Incorrect; Try Again; $7$ attempts remaining

Part B

Determine the $y$ component of reaction at point A using scalar notation.

Express your answer to three significant figures and include the appropriate units.

$A_y=$

Part C

Determine the $x$ and $y$ components of reaction at point $B$ using scalar notation.

Express your answers using three significant figures separated by a comma.

$B_x,B_y=$

$kN$
