Question: Part A Three forces act on the bracket as shown in ( Figure 1 ) . The resultant force is directed along the positive x

Part A

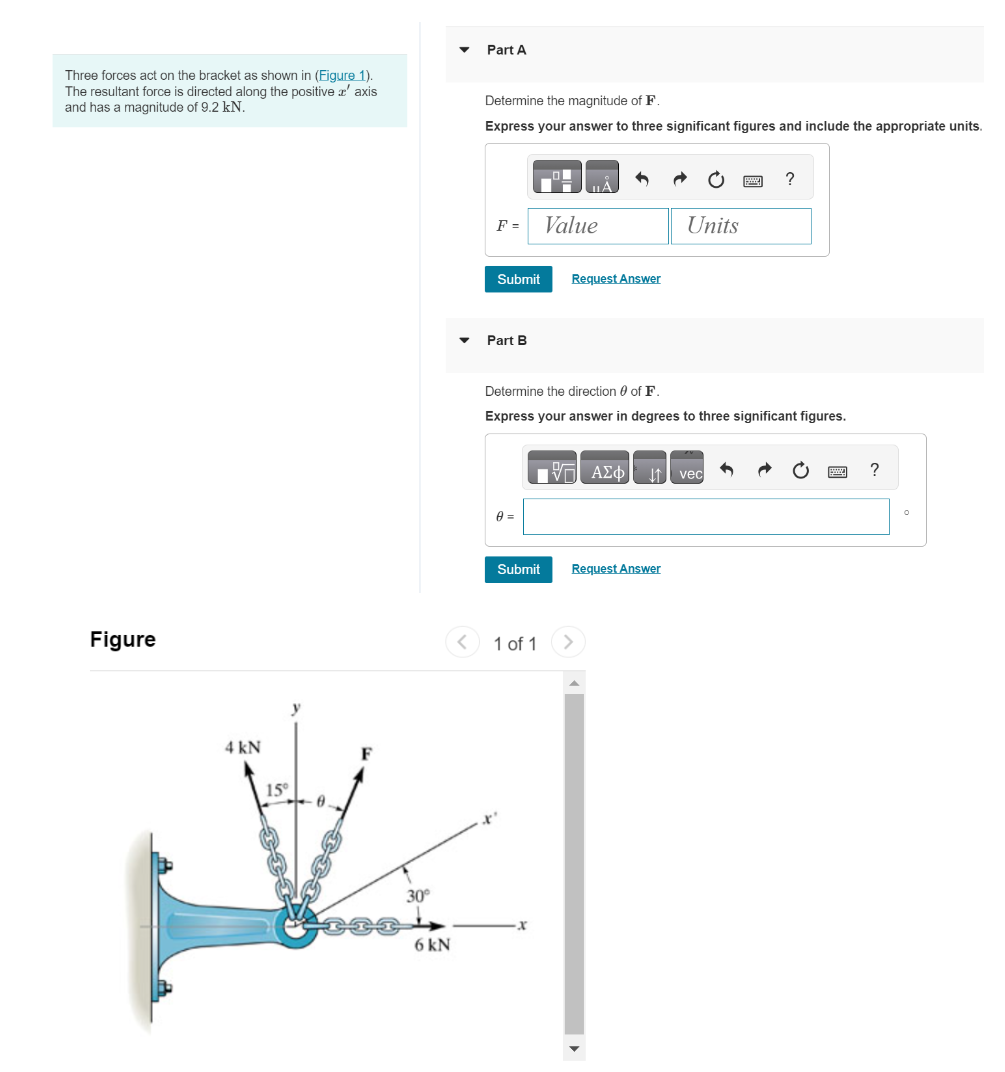

Three forces act on the bracket as shown in (Figure 1).
The resultant force is directed along the positive x' axis
and has a magnitude of 9.2 kN .
Determine the magnitude of F.
Express your answer to three significant figures and include the appropriate units.
F=
Request Answer
Part B
Determine the direction of F.
Express your answer in degrees to three significant figures.
=
Request Answer
Figure
Part A Three forces act on the bracket as shown

Step by Step Solution

There are 3 Steps involved in it
