Part a) Write a line of code that configures the module as the following:

(Sleep mode 1)(Clock speed 5)(Capacitor value 2)(Interrupts enabled)

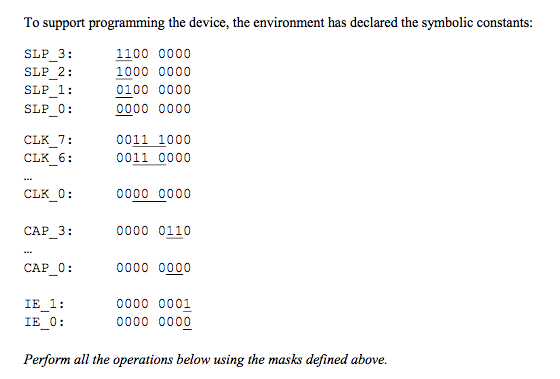

Part b) For the operation above, show the masks used and the final value of CTL in binary. Part c) Write a piece of code that changes SLP to 2. The current value of SLP is unknown. Part d) Write a piece of code that changes CLK to 6. The current value of CLK is unknown. Part e) Write an if-condition line that checks if SLP=2.

Part f) Write an if-condition line that checks if CLK=6. Part g) Write an if-condition that checks if the current value of CLK is either of (0, 2, 4, 6).

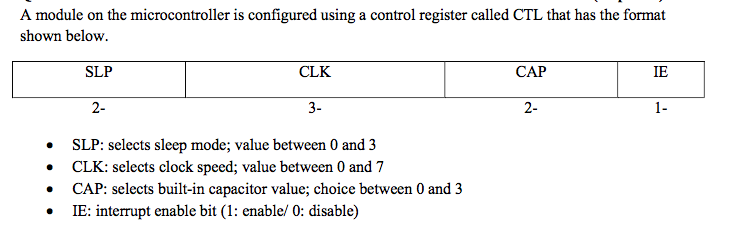

A module on the microcontroller is configured using a control register called CTL that has the format shown below. SLP CLK CAP IE 2- 3- 2- 1- SLP: selects sleep mode; value between 0 and 3 CLK: selects clock speed; value between 0 and 7 CAP: selects built-in capacitor value; choice between 0 and 3 IE: interrupt enable bit (1: enable/ 0: disable) A module on the microcontroller is configured using a control register called CTL that has the format shown below. SLP CLK CAP IE 2- 3- 2- 1- SLP: selects sleep mode; value between 0 and 3 CLK: selects clock speed; value between 0 and 7 CAP: selects built-in capacitor value; choice between 0 and 3 IE: interrupt enable bit (1: enable/ 0: disable)
