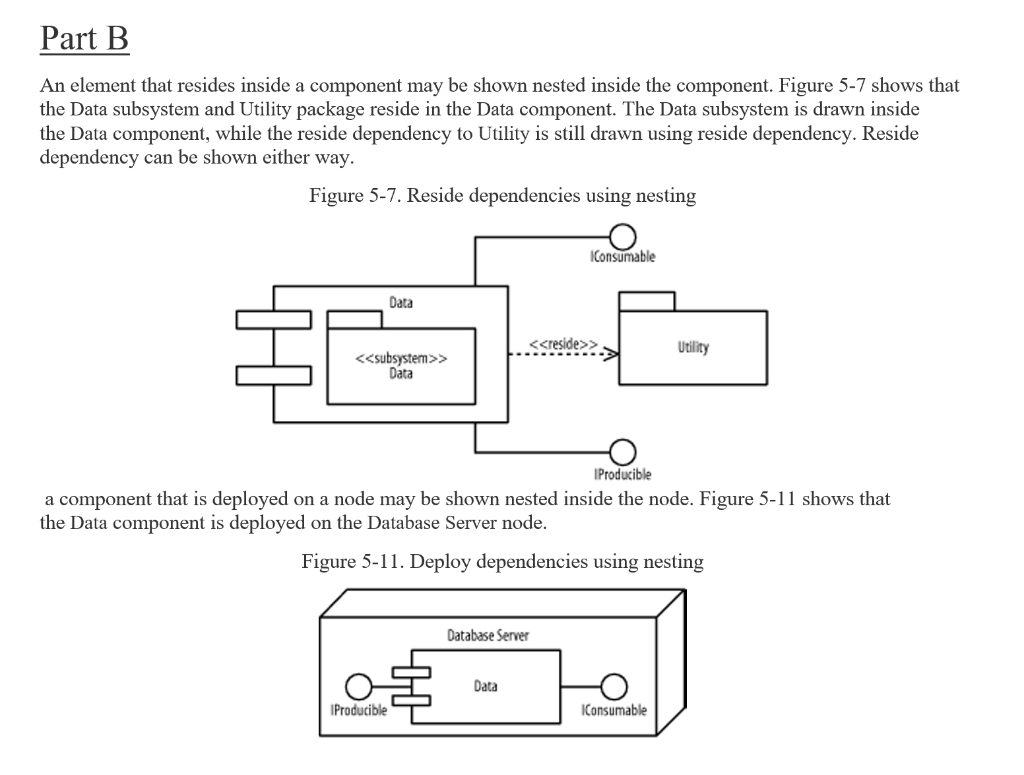

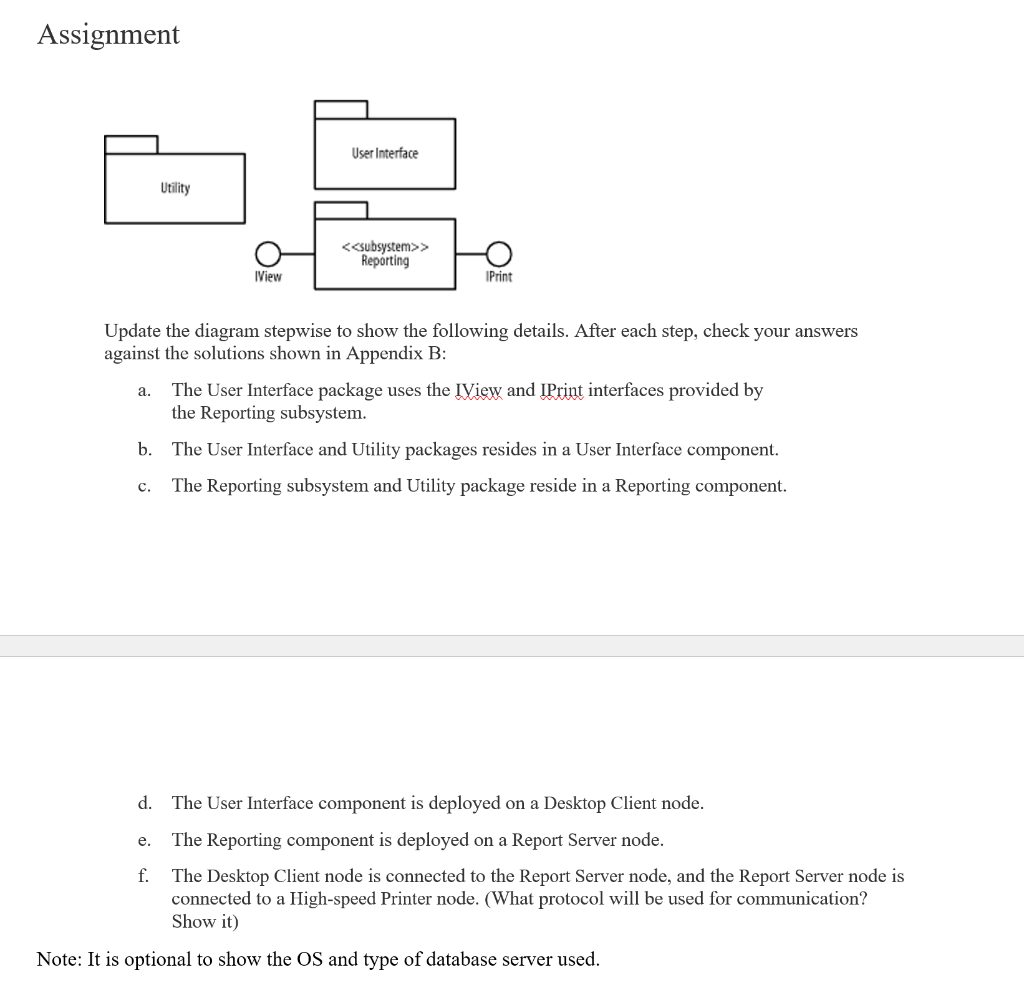

Part B An element that resides inside a component may be shown nested inside the component. Figure 5-7 shows that the Data subsystem and Utility package reside in the Data component. The Data subsystem is drawn inside the Data component, while the reside dependency to Utility is still drawn using reside dependency. Reside dependency can be shown either way. Figure 5-7. Reside dependencies using nesting Consumable Data > Utility > Data Producible a component that is deployed on a node may be shown nested inside the node. Figure 5-11 shows that the Data component is deployed on the Database Server node. Figure 5-11. Deploy dependencies using nesting Database Server Data I Producible Consumable Assignment User Interface Utility > Reporting IView Print a. Update the diagram stepwise to show the following details. After each step, check your answers against the solutions shown in Appendix B: The User Interface package uses the IView and IPrint interfaces provided by the Reporting subsystem. b. The User Interface and Utility packages resides in a User Interface component. The Reporting subsystem and Utility package reside in a Reporting component. a c. e. d. The User Interface component is deployed on a Desktop Client node. The Reporting component is deployed on a Report Server node. f. The Desktop Client node is connected to the Report Server node, and the Report Server node is connected to a High-speed Printer node. (What protocol will be used for communication? Show it) Note: It is optional to show the OS and type of database server used
