Question: Part B - Internal Loading on a Semicircular Member Consider the semicircular member and loading shown in the image where d = 0 . 5

Part B - Internal Loading on a Semicircular Member

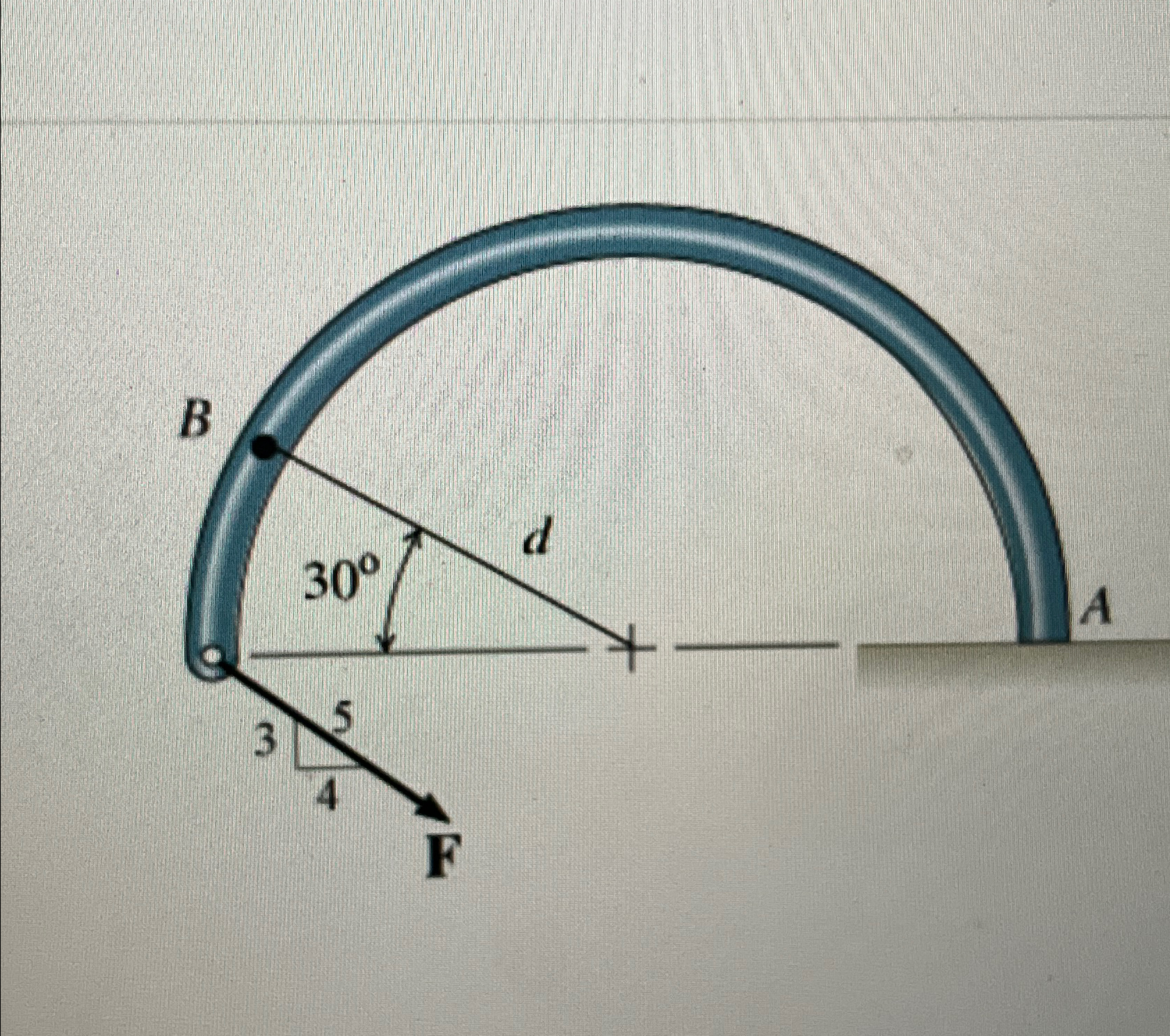

Consider the semicircular member and loading shown in the image where d=0.590m and F=45.0N.(Figure 4)
Determine the magnitudes of the internal loadings on the beam at point B.
Express your answers, separated by commas, to three significant figures.
View Available Hint(s)
NB=,VB=,MB=,N,N,N*m
