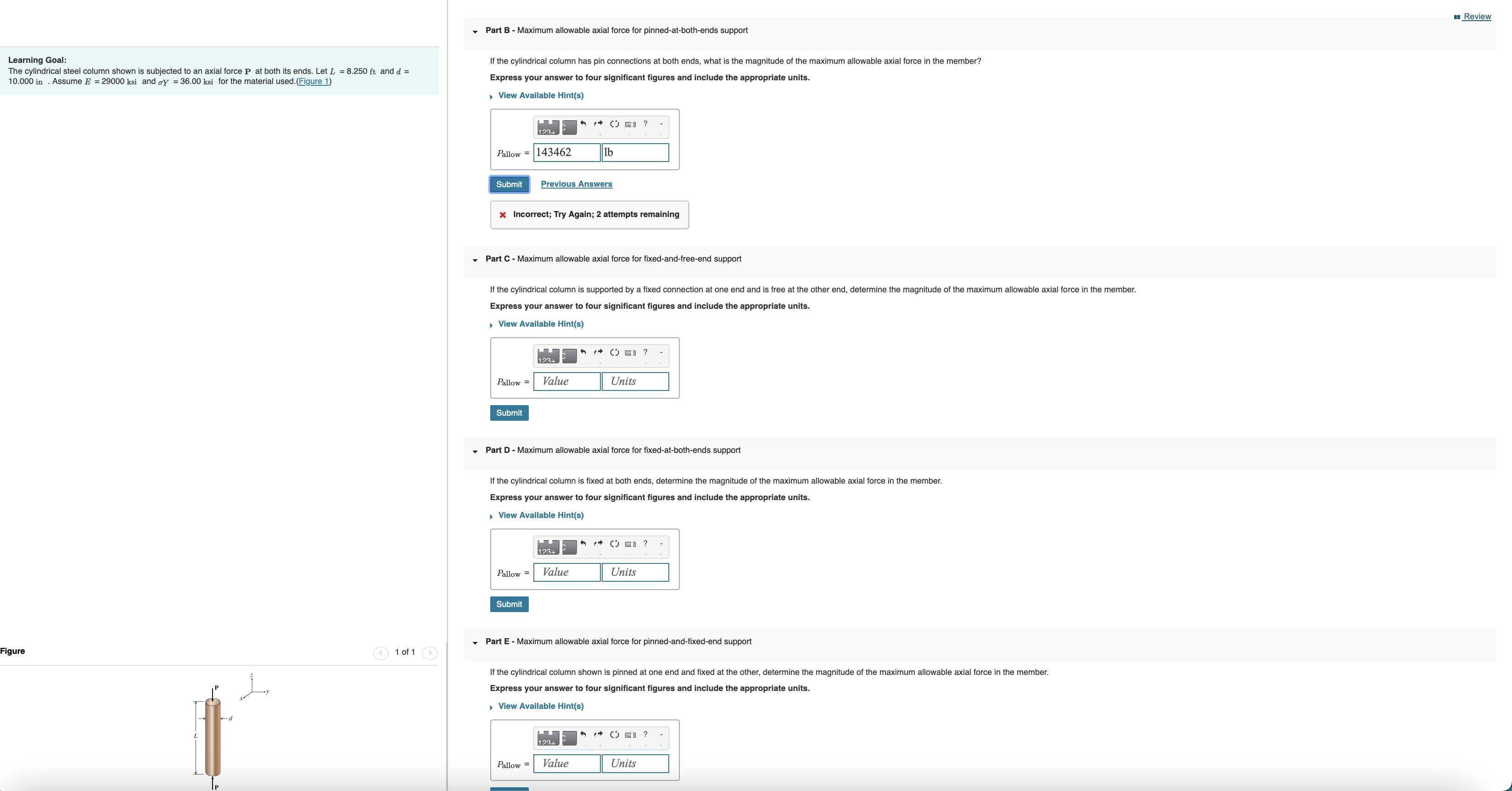

Part B $-$ Maximum allowable axial force for pinned$-$at$-$both$-$ends support

Learning Goal: $$

The cylindrical steel column shown is subjected to an axial force $P$ at both its ends. Let $L=8\mathrm{.}250ft$ and $d=$

$10\mathrm{.}000$ in $.$ Assume $E=29000$ksi and $Y=36\mathrm{.}00$ksi for the material used.$($Figure $1)$

If the cylindrical column has pin connections at both ends, what is the magnitude of the maximum allowable axial force in the member?

Express your answer to four significant figures and include the appropriate units.

View Available Hint$($s$)$

$14$

$$ Incorrect; Try Again; $2$ attempts remaining

Part C $-$ Maximum allowable axial force for fixed$-$and$-$free$-$end support

If the cylindrical column is supported by a fixed connection at one end and is free at the other end, determine the magnitude of the maximum allowable axial force in the member

Express your answer to four significant figures and include the appropriate units.

View Available Hint$($s$)$

Pallor

Pall

Part D $-$ Maximum allowable axial force for fixed$-$at$-$both$-$ends support

If the cylindrical column is fixed at both ends, determine the magnitude of the maximum allowable axial force in the member.

Express your answer to four significant figures and include the appropriate units.

View Available Hint$($s$)$

Part E $-$ Maximum allowable axial force for pinned$-$and$-$fixed$-$end support

If the cylindrical column shown is pinned at one end and fixed at the other, determine the magnitude of the maximum allowable axial force in the member.

Express your answer to four significant figures and include the appropriate units.

View Available Hint$($s$)$
