Question: Part B Replace the five forces acting on the plate by a wrench ( Figure 1 ) . Suppose that F 1 = 8 5

Part B

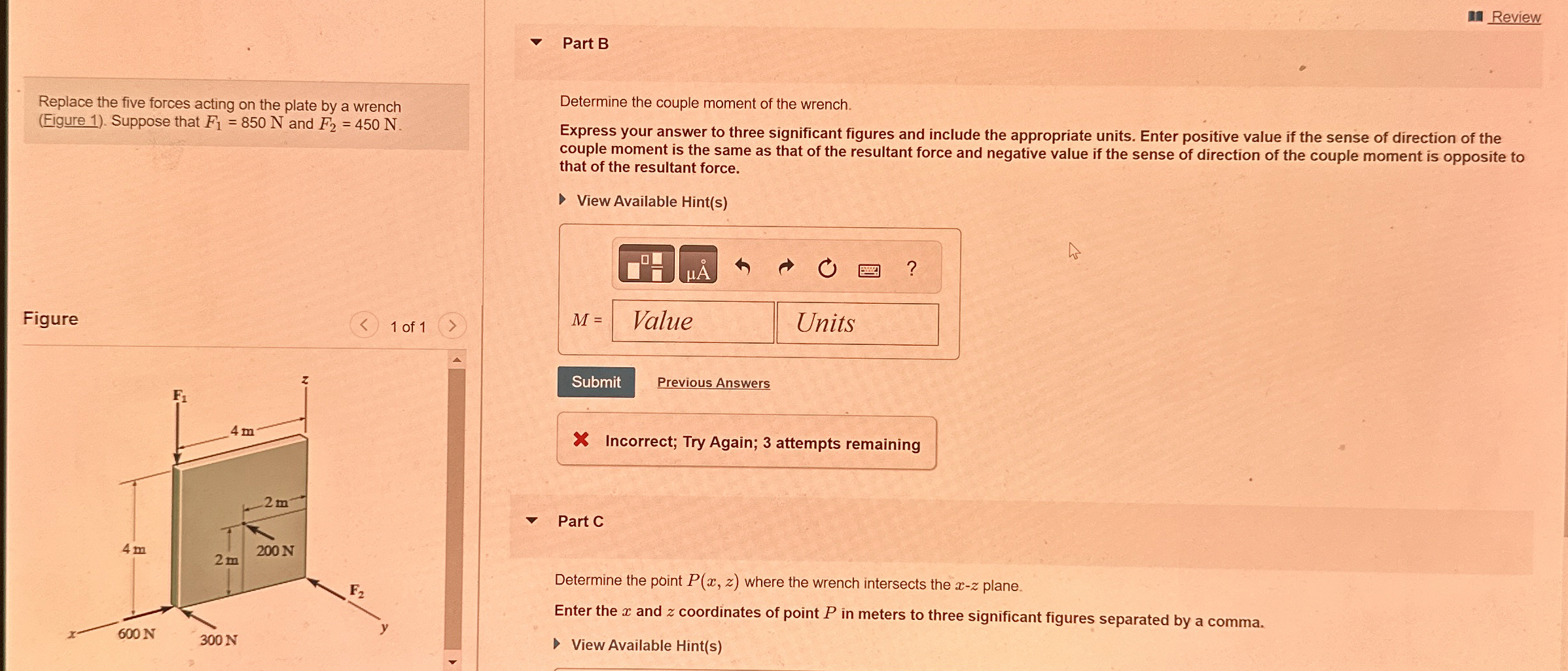

Replace the five forces acting on the plate by a wrench
(Figure 1). Suppose that F1=850N and F2=450N.
Figure
1 of 1
Determine the couple moment of the wrench.
Express your answer to three significant figures and include the appropriate units. Enter positive value if the sense of direction of the
couple moment is the same as that of the resultant force and negative value if the sense of direction of the couple moment is opposite to
that of the resultant force.
View Available Hint(s)
Previous Answers
Incorrect; Try Again; 3 attempts remaining
Part C
Determine the point P(x,z) where the wrench intersects the x-z plane.
Enter the x and z coordinates of point P in meters to three significant figures separated by a comma.
View Available Hint(s)
Part B Replace the five forces acting on the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
