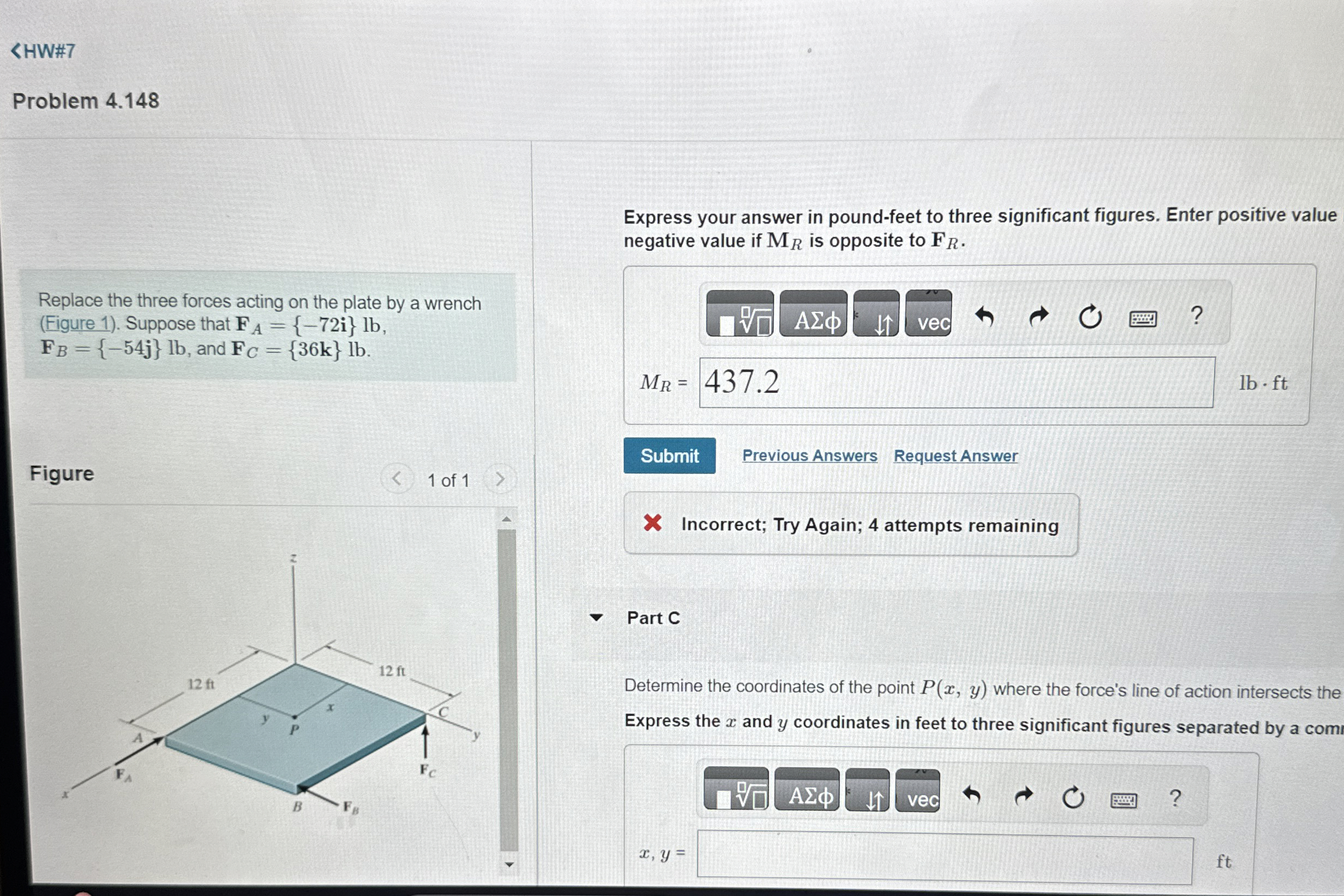

Question: Problem 4 . 1 4 8 Replace the three forces acting on the plate by a wrench ( Figure 1 ) . Suppose that F

Problem 4.148
Replace the three forces acting on the plate by a wrench
(Figure 1). Suppose that FA={-72i}lb,
FB={-54j}lb, and FC={36k}lb.
Figure
Express your answer in pound-feet to three significant figures. Enter positive value
negative value if MR is opposite to FR.
MR=
Incorrect; Try Again; 4 attempts remaining
Part C
Determine the coordinates of the point P(x,y) where the force's line of action intersects the
Express the x and y coordinates in feet to three significant figures separated by comi
x,y=
ft
Problem 4 . 1 4 8 Replace the three forces acting

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the three forces acting on the plate by a wrench. Suppose that FA = { 6 0 0 i } N , FB = { 4 5 0 k } N , and FC = { 2 0 0 j } N . Part 1 Determine the magnitude of the force of the wrench....

Q:

Replace the three forces acting on the plate by a wrench ( Figure 1 ) . Suppose that FA = { 7 2 i } lbFA = { 7 2 i } lb , FB = { 5 4 j } lbFB = { 5 4 j } lb , and FC = { 3 6 k } lbFC = { 3 6 k } lb ....

Q:

0.5 m 0.5 m 8 kN B Q4[B] 3 m 0.5 m -1.5 m 6 kN (Figure 5) S 5 kN 12 B FB-1-60jl 2 12. Fc-1-40i) FA-1-80k) (Figure 6) Replace the three forces acting on the plate by a wrench. Specify the magnitude of...

Q:

Replace the three forces acting on the plate by a wrench ( Figure 1 ) . Suppose that Figure 1 of 1 F A = { - 5 6 i } l b . F B = { - 4 2 j } l b . and F C = { 2 8 k } l b . Determine the magnitude of...

Q:

Express your answer in pounds to three significant figures. Replace the three forces acting on the plate by a wrench ( Figure 1 ) . Suppose that F A = { - 8 0 i } l b , F B = { - 6 0 j } l b , and F...

Q:

Replace the three forces acting on the plate by a wrench ( Figure 1 ) . Suppose that F A = { - 5 6 i } l b , F B = { - 4 2 j } l b , and F C = { 2 8 k } l l Determine the magnitude of the resultant...

Q:

Replace the three forces acting on the plate by a wrench ( Figure 1 ) . Suppose that F A = { - 5 6 i } l b , F B = { - 4 2 j } l b , and F C = { 2 8 k } l b . Part A Determine the magnitude of the...

Q:

Replace the three forces acting on the plate by a wrench ( Figure 1 ) . Suppose that FA = { 8 0 i } lb , FB = { 6 0 j } lb , and FC = { 4 0 k } lb .

Q:

Part B Replace the five forces acting on the plate by a wrench ( Figure 1 ) . Suppose that F 1 = 8 5 0 N and F 2 = 4 5 0 N . Figure 1 of 1 Determine the couple moment of the wrench. Express your...

Q:

Replace the five forces acting on the plate by a wrench. Suppose that F = 750 N and F = 550 N. (Figure 1) Figure 1 of 1 4 m 600 N 4 m 2m 300 N 2 m 200 N N F
