Question: Part E In ( Figure 1 ) , w = 6 0 0 N m . Follow the sign convention. Figure 1 of 1 Determine

Part E

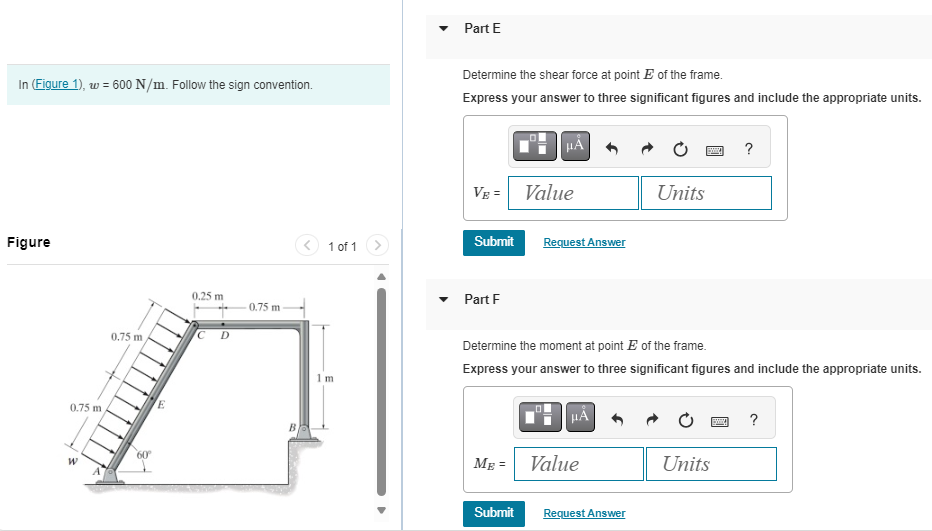

In (Figure 1),w=600Nm. Follow the sign convention.
Figure
1 of 1
Determine the shear force at point E of the frame.
Express your answer to three significant figures and include the appropriate units.
VE=
Part E In ( Figure 1 ) , w = 6 0 0 N m . Follow

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
