Question: PART E ONLY Values provided for Parts A - D Part A: Va = 18.1 m/s; Vb - Vj = 24.1 m/s Part B: 5.88

PART "E" ONLY

Values provided for Parts A - D

Part A: Va = 18.1 m/s; Vb - Vj = 24.1 m/s

Part B: 5.88 bar

Part C: Vj = Vb = 5.7 m/s; Va = 7.6 m/s

Part D: Kf3 = 0.08

Part E:

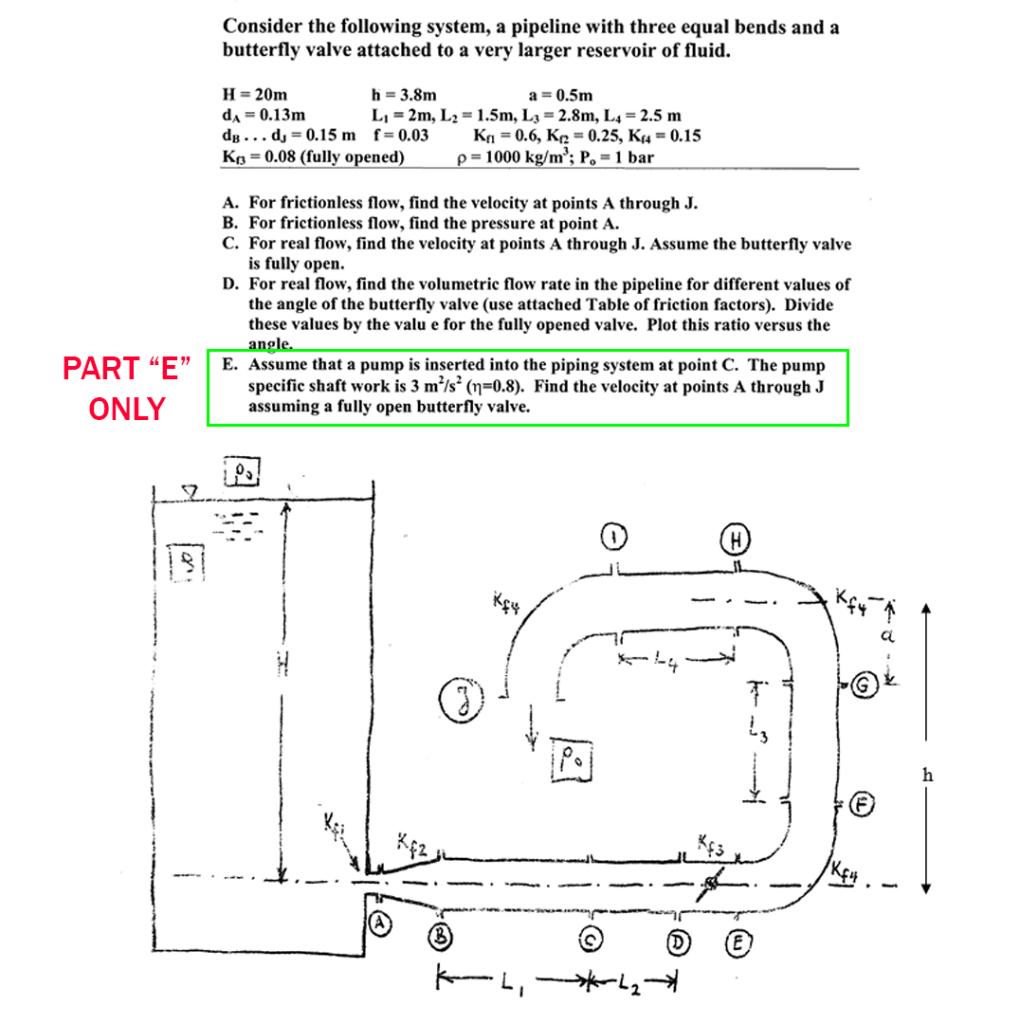

PART "E" ONLY Values provided for Parts A - D Part A:Va = 18.1 m/s; Vb - Vj = 24.1 m/s Part B:

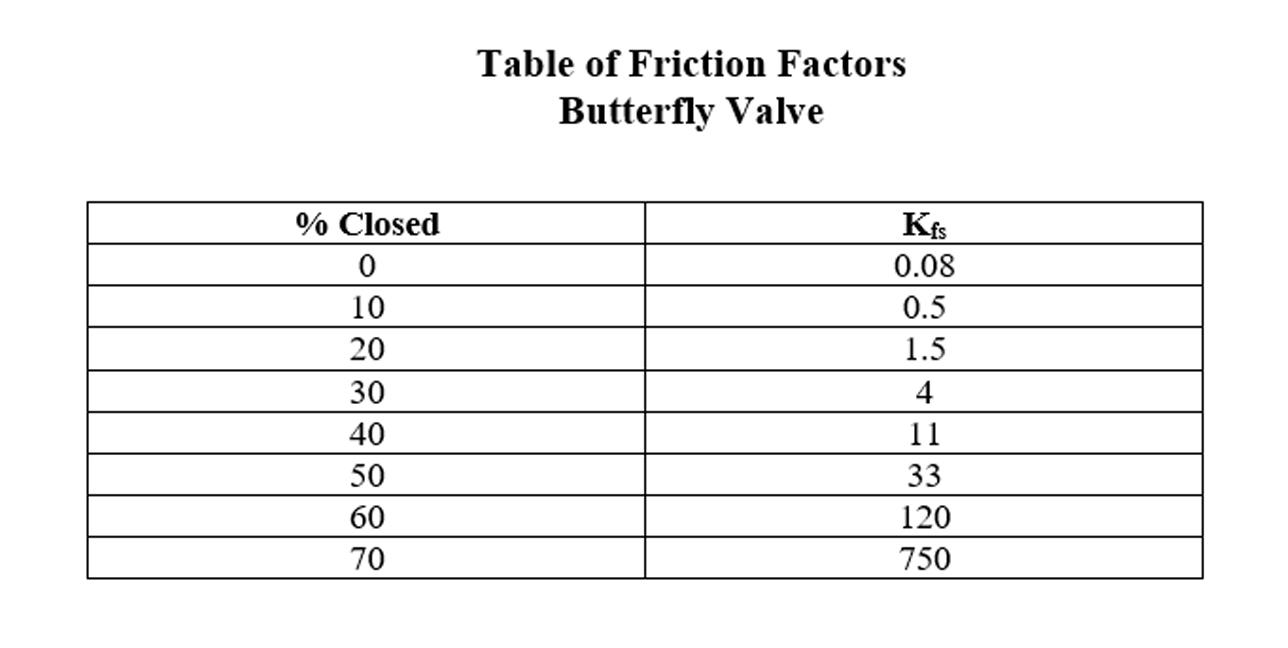

Table of Friction Factor's Butterfly Valve % Closed 0 10 20 30 40 50 60 70 Kfs 0.08 0.5 1.5 4 11 33 120 750

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
