Part II Programming Question $(10$ points$)$: Process Virtual Memory Addresses

$1.$ Preamble

Every Linux process has its own dedicated memory address space. The kernel

maps these "virtual" addresses in the process address space to actual physical

memory addresses as necessary. In other words, the data stored at address

$0$xDEADBEEF in one process is not necessarily the same as the data stored at the

same address in another process. When an attempt is made to access the data, the

kernel translates the virtual address into an appropriate physical address to retrieve

the data from memory. We are not really concerned with physical addresses.

Rather, we are investigating exactly how the operating system allocates more

virtual addresses to a process.

$2.$ Three Segments of User Space

The user context of a process is made up of the portions of the address space

that are accessible to the process while it is running in user mode.

There are a few definitions that come in handy when we are talking about

memory:

$$ global variable $$ one declared outside of any function.

$$ local static variable $$ one declared inside a function with the static

keyword. Such a variable keeps its value across function calls. For instance,

if it has the value $57$ after you return from the function call, when that

function is called again, it will still be $57.$

$$ local automatic variable $$ any variable declared inside a function without

the static keyword.

$$ heap$$is dynamically allocated space.

o In C$,$ you use malloc or calloc

o In C$++,$ you use new

The portions of address space are: text, data, and stack. They are described in

further detail below:

$$ Text

o sometimes called the instruction or code segment

o contains executable program code and constant data

o is read only

o multiple processes can share this segment if a second copy of the

program is to be executed concurrently

$$ Data

o contiguous $($in a virtual sense$)$ with the text segment

o subdivided in to three sections:

$$ initialized data $($static or global variables$)$

Example: static int a $=10$;

int x $=10$; $//$ outside of any functions

$$ uninitialized data $($static or global variables$)$

Example: static int b;

int y; $//$ outside of any functions

$$ heap $($dynamically allocated$)$

Example: int$*$ p $=$ new int$[1000]$; $//$ in c$++$

int$*$ p $=($int $*)$ malloc$(1000*$sizeof$($int$))$;$//$ in c

o addresses increase as the heap grows

$$ Stack

o used for function call information including:

$$ address to return to

$$ the values or addresses of all parameters

$$ local automatic variables

o addresses decrease as the stack grows

Notice that the stack grows towards the uninitialized data and the heap grows

towards the stack.

Memory references to Text, Data and Stack in a user space program are done

with virtual addresses. The kernel translates these virtual addresses to physical

memory addresses.

In working with these virtual addresses, you have access to three external

variables:

$$ etext$$first valid address above the text segment

$$ edata$$first valid address above initialized data segment

$$ end$$first valid address above the uninitialized data segment

$3.$ Programming Task

The purpose of this assignment is to explore the virtual memory associated

with the user process: text, data, and stack.

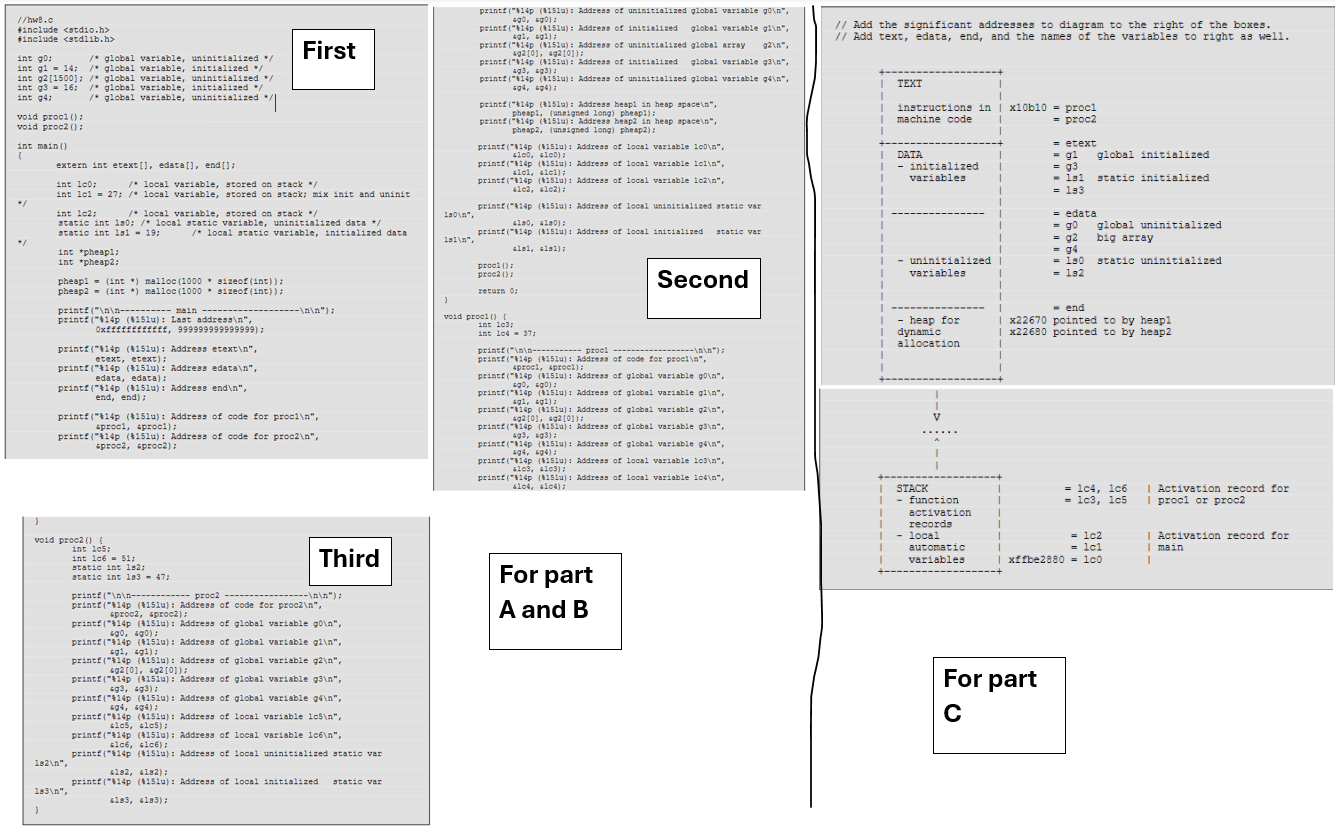

a$.$ Copy and paste the following source code, ensure that you understand variables,

functions defined in the file. $($you also can download the source file hw$8.$c from

Canvas under HW$8)$:

b$.$ Compile and run the program.

$gcc hw$8.$c $-$o hw$8$

$$./$hw$8$

$$./$hw$8>$output.txt

The hexadecimal and decimal addresses are output from the program including:

o etext

o edata

o end

o functions

o global variables

o static local variables

o heap variables

You may want to use a redirect $(./$hw$8>$ output.txt$)$ to save the output

for later.

c$.$ Your task is to fill in addresses of the variables, and functions, including:

o instructions in machine code

o global initialized variables

o static initialized variables

o global uninitialized variables

o static uninitialized variables

o dynamically allocated variables

o local automatic variables from main

o local automatic variables from each of proc$1$ and proc$2$

Fill in the following template $($you can download the template file

MemoryDiagram.txt from Canvas under HW$8)$:

d$.$ Please answer the following $2$ questions.

$1)$ As variables are added to the stack, do the addresses get smaller or larger?

$2)$ Do variables stored on the stack ever have the same address as other

variables? Why or why not?
