Question: PART IV - Pipe Simulation Start a new model: Create the hollow pipe shown with the given centerline and the weldments command. Use an

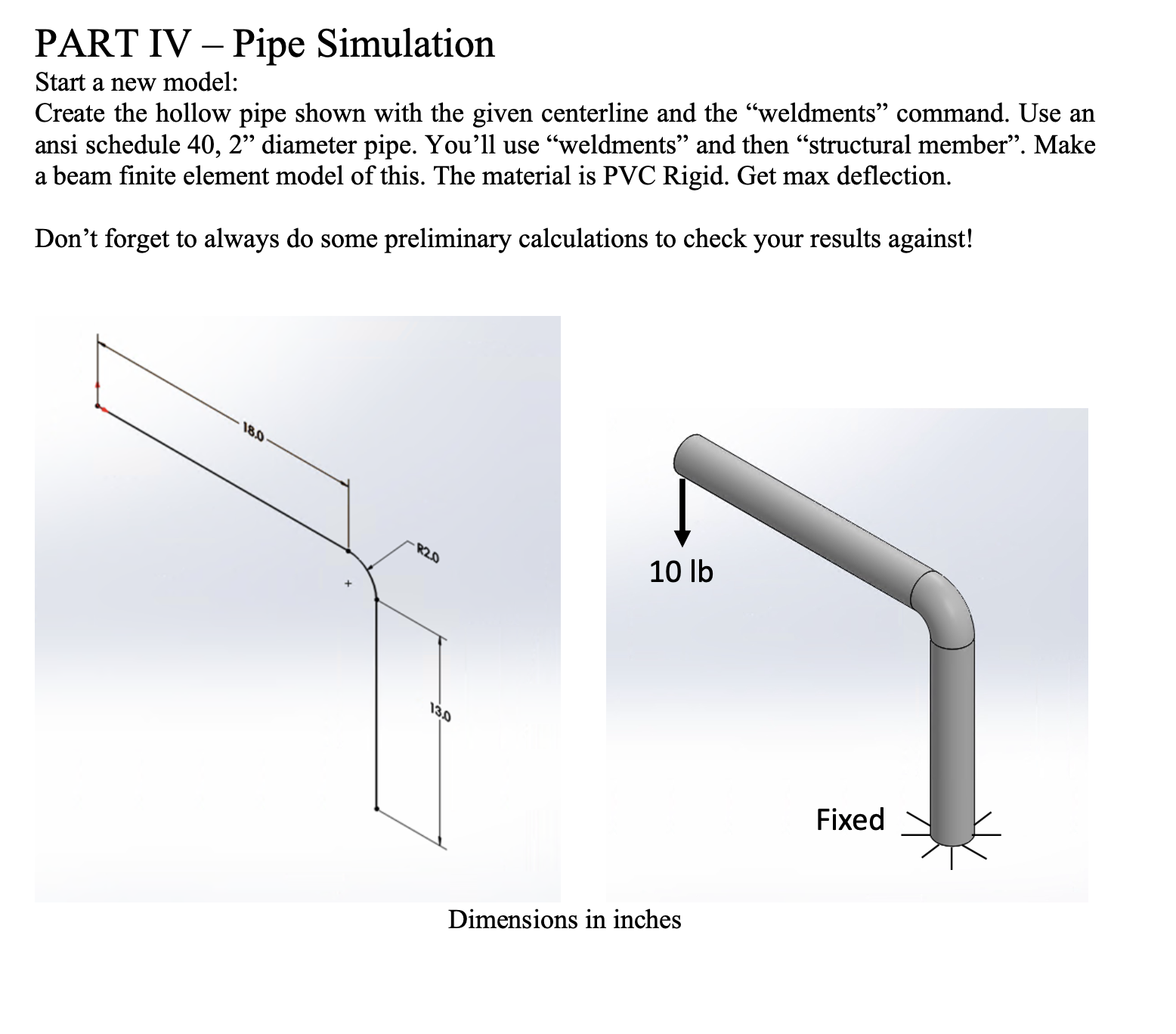

PART IV - Pipe Simulation Start a new model: Create the hollow pipe shown with the given centerline and the "weldments" command. Use an ansi schedule 40, 2" diameter pipe. You'll use "weldments" and then structural member. Make a beam finite element model of this. The material is PVC Rigid. Get max deflection. Don't forget to always do some preliminary calculations to check your results against! 18.0 10 lb R20 13.0 Dimensions in inches Fixed
