parts a and b only:

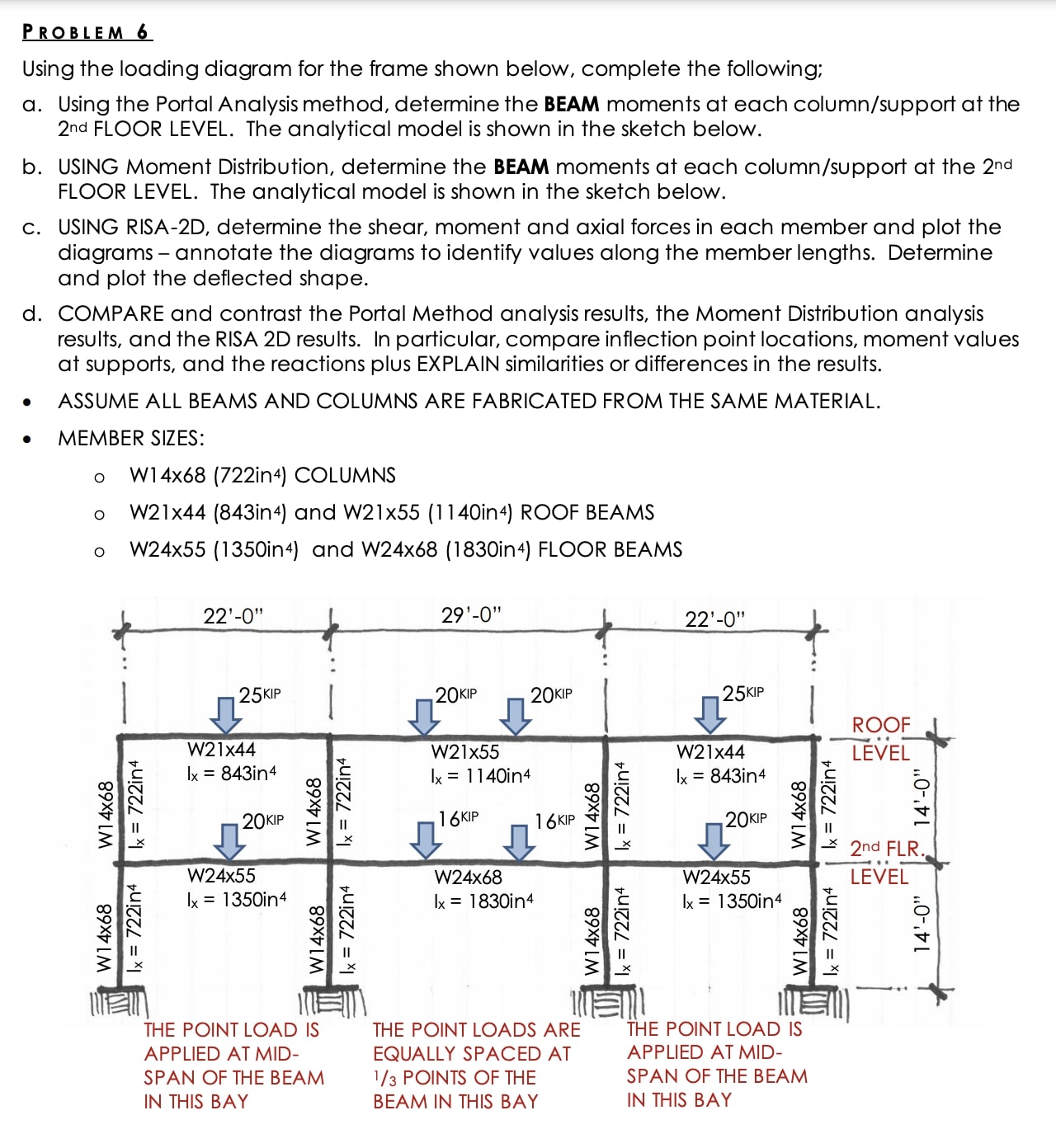

PROBLEM $6$

Using the loading diagram for the frame shown below, complete the following;

a$.$ Using the Portal Analysis method, determine the BEAM moments at each column$/$support at the

$2$nd FLOOR LEVEL. The analytical model is shown in the sketch below.

b$.$ USING Moment Distribution, determine the BEAM moments at each column$/$support at the $2^{nd}$

FLOOR LEVEL. The analytical model is shown in the sketch below.

c$.$ USING RISA$-2$D$,$ determine the shear, moment and axial forces in each member and plot the

diagrams $-$ annotate the diagrams to identify values along the member lengths. Determine

and plot the deflected shape.

d$.$ COMPARE and contrast the Portal Method analysis results, the Moment Distribution analysis

results, and the RISA $2$D results. In particular, compare inflection point locations, moment values

at supports, and the reactions plus EXPLAIN similarities or differences in the results.

ASSUME ALL BEAMS AND COLUMNS ARE FABRICATED FROM THE SAME MATERIAL.

MEMBER SIZES:

W$14$x$68(722$in$4)$ COLUMNS

W$21$x$44(843$in$4)$ and W$21$x$55(1140$in$4)$ ROOF BEAMS

W$24$x$55(1350$in$4)$ and W$24$x$68(1830$in$4)$ FLOOR BEAMS
