Question: Pb 5 - A ( 4 8 0 - mathrm { V } , 6 0 mathrm { ~Hz } , 5

Pb5-A \(480-\mathrm{V},60\mathrm{~Hz},50-\mathrm{hp}\), three phase induction motor is drawing 60 A at 0.85 PF lagging. The stator copper losses are 2 kW , and the rotor copper losses are 700 W . The friction and windage losses are 600 W , the core losses are 1800 W , and the stray losses are negligible. Find the following quantities: (8 Marks)
1. The air-gap power PAG.
2. The power converted Peonv.
3. The output power \(\mathrm{P}_{\text {out }}\).
4. The efficiency of the motor.

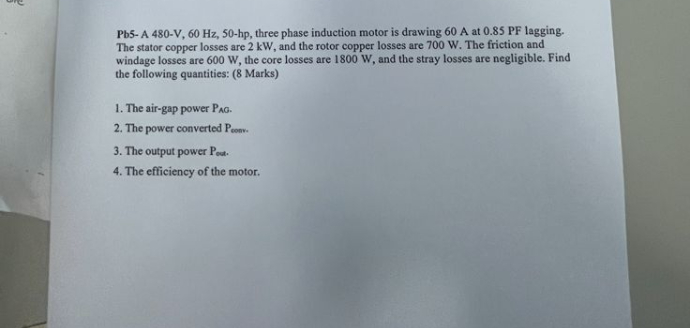

Pb 5 - A \ ( 4 8 0 - \ mathrm { V } , 6 0 \
