Question: Physics (a) l1 + 12= 13 b 3.0V - I R1 + 7.0V + 13R3= 0 C 5.0v- 13R3-7.0V- 12R2= 0 d -3.0V- 13R3- 7.0v+

Physics (a) l1 + 12= 13 b 3.0V - I R1

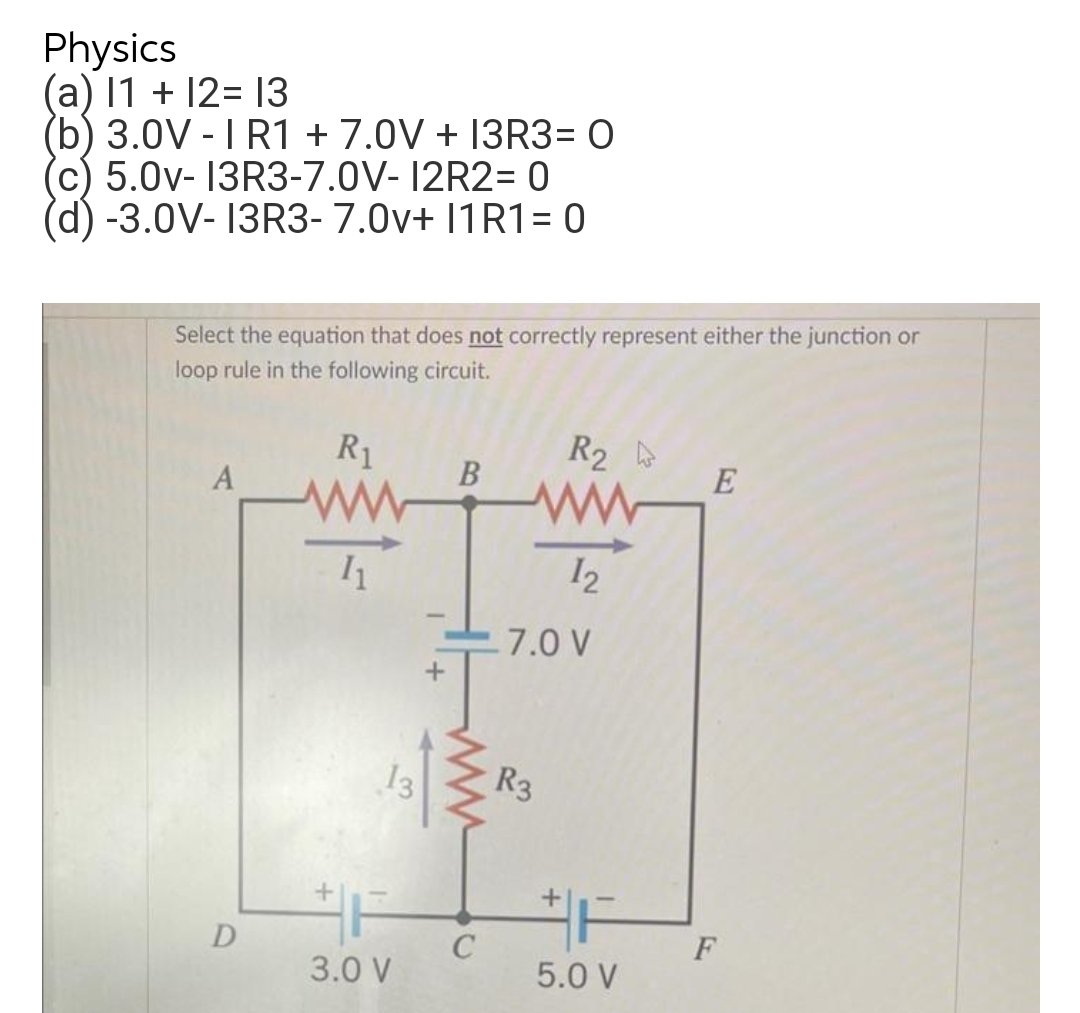

Physics (a) l1 + 12= 13 b 3.0V - I R1 + 7.0V + 13R3= 0 C 5.0v- 13R3-7.0V- 12R2= 0 d -3.0V- 13R3- 7.0v+ |1R1= 0 Select the equation that does not correctly represent either the junction or loop rule in the following circuit. R1 R2 h A B E WW I1 12 7.0 V + 13 R3 + + D C F 3.0 V 5.0 V

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
