please answer # 1 and 2 for # 1 I need a diagram and need help with # 2

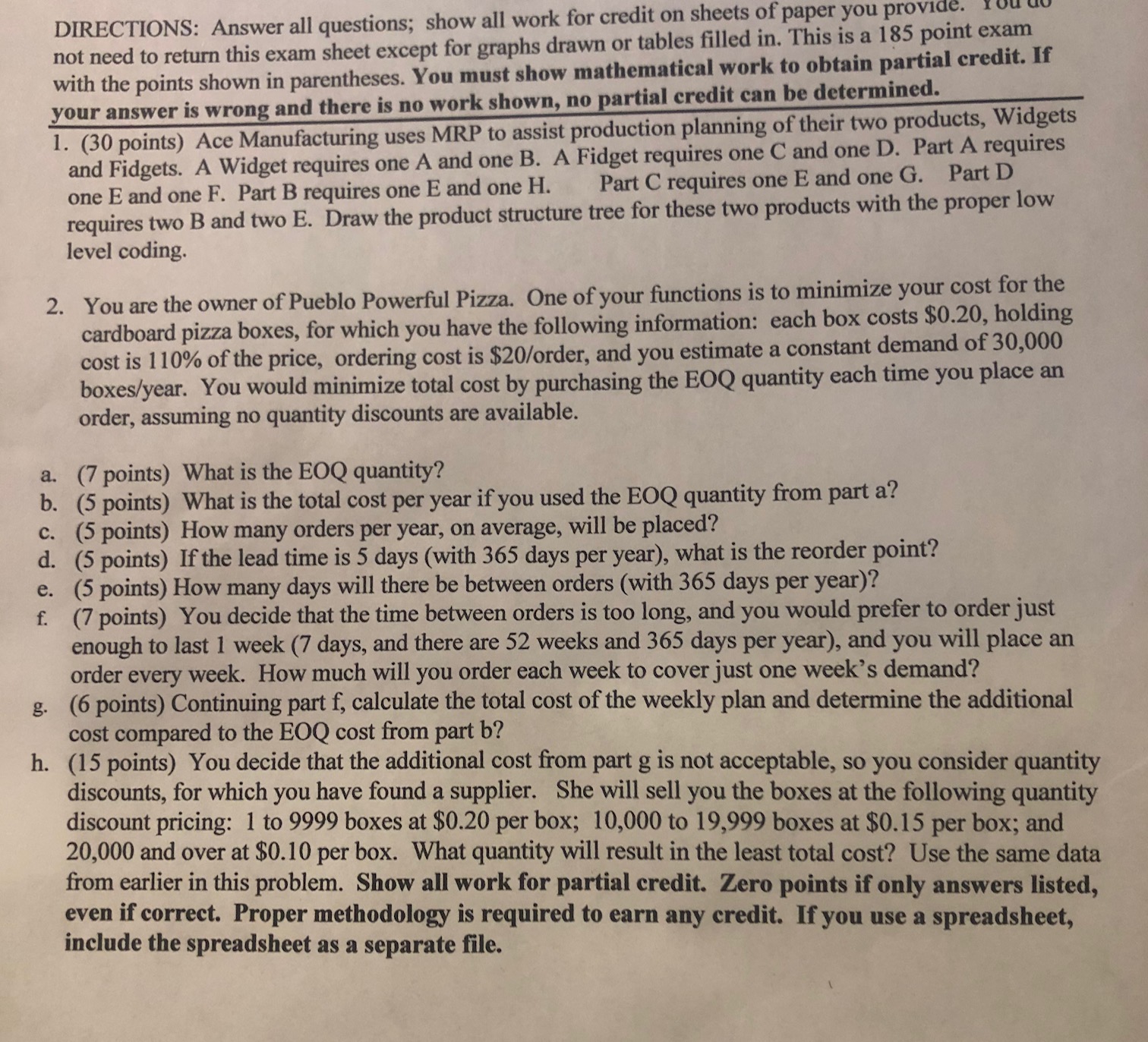

DIRECTIONS: Answer all questions; show all work for credit on sheets of paper you provide. not need to return this exam sheet except for graphs drawn or tables filled in. This is a 185 point exam with the points shown in parentheses. You must show mathematical work to obtain partial credit. If your answer is wrong and there is no work shown, no partial credit can be determined. 1. (30 points) Ace Manufacturing uses MRP to assist production planning of their two products, Widgets and Fidgets. A Widget requires one A and one B. A Fidget requires one C and one D. Part A requires one E and one F. Part B requires one E and one H. Part C requires one E and one G. Part D requires two B and two E. Draw the product structure tree for these two products with the proper low level coding. 2. You are the owner of Pueblo Powerful Pizza. One of your functions is to minimize your cost for the cardboard pizza boxes, for which you have the following information: each box costs $0.20, holding cost is 110% of the price, ordering cost is $20/order, and you estimate a constant demand of 30,000 boxes/year. You would minimize total cost by purchasing the EOQ quantity each time you place an order, assuming no quantity discounts are available. a. (7 points) What is the EOQ quantity? b. (5 points) What is the total cost per year if you used the EOQ quantity from part a? c. (5 points) How many orders per year, on average, will be placed? d. (5 points) If the lead time is 5 days (with 365 days per year), what is the reorder point? e. (5 points) How many days will there be between orders (with 365 days per year)? f. (7 points) You decide that the time between orders is too long, and you would prefer to order just enough to last 1 week (7 days, and there are 52 weeks and 365 days per year), and you will place an order every week. How much will you order each week to cover just one week's demand? g. (6 points) Continuing part f, calculate the total cost of the weekly plan and determine the additional cost compared to the EOQ cost from part b? h. (15 points) You decide that the additional cost from part g is not acceptable, so you consider quantity discounts, for which you have found a supplier. She will sell you the boxes at the following quantity discount pricing: 1 to 9999 boxes at $0.20 per box; 10,000 to 19,999 boxes at $0.15 per box; and 20,000 and over at $0.10 per box. What quantity will result in the least total cost? Use the same data from earlier in this problem. Show all work for partial credit. Zero points if only answers listed, even if correct. Proper methodology is required to earn any credit. If you use a spreadsheet, include the spreadsheet as a separate file
