Question: please answer all questions Asap for guaranteed like Stream Type I, (C) T (C) CP (kW/C) 1 180 80 ATmin= 10 Hot Hot 1 2

please answer all questions Asap for guaranteed like

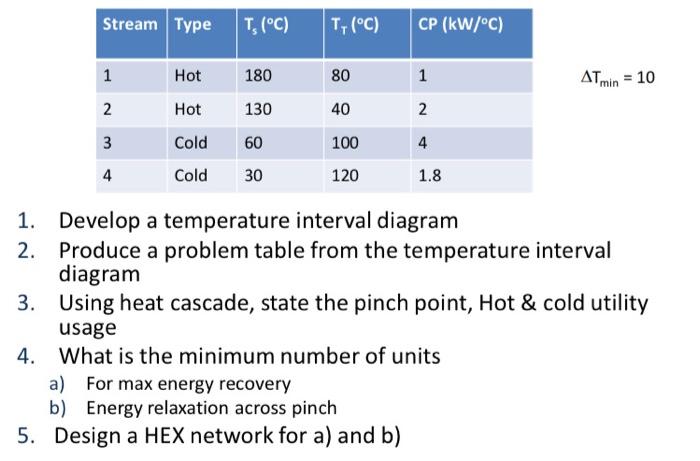

Stream Type I, (C) T (C) CP (kW/C) 1 180 80 ATmin= 10 Hot Hot 1 2 2 130 40 3 Cold 60 100 4 4 Cold 30 120 1.8 1. Develop a temperature interval diagram 2. Produce a problem table from the temperature interval diagram 3. Using heat cascade, state the pinch point, Hot & cold utility usage 4. What is the minimum number of units a) For max energy recovery b) Energy relaxation across pinch 5. Design a HEX network for a) and b)

Step by Step Solution

There are 3 Steps involved in it
