Please answer all the questions and don't use AI.

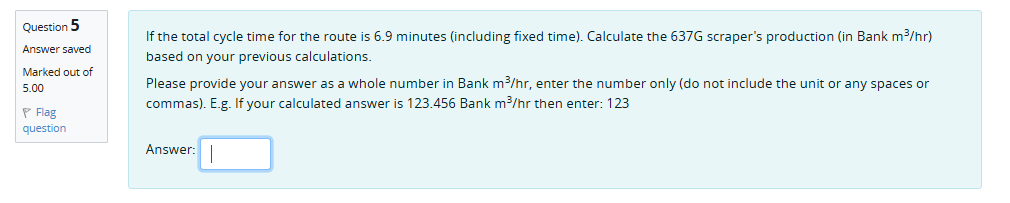

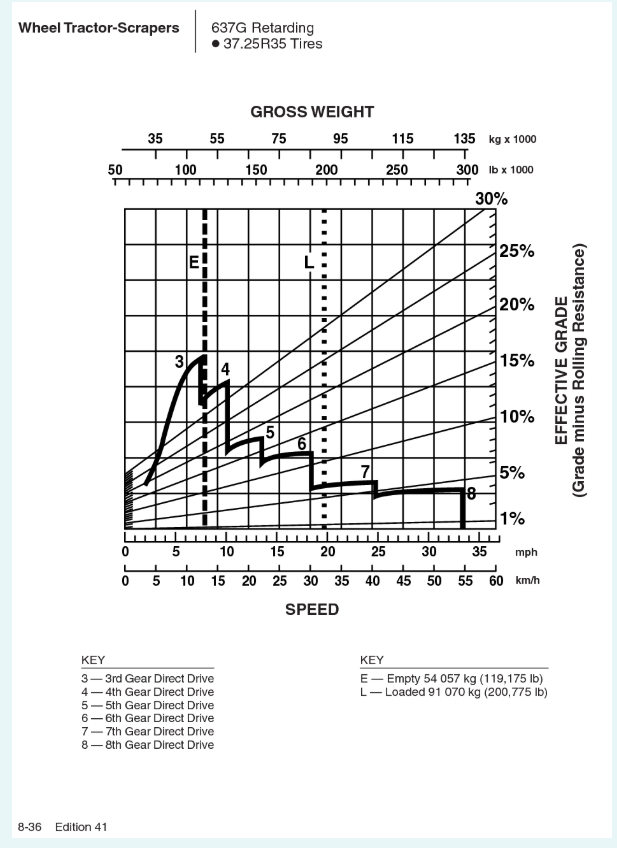

Question 5 Answer saved Marked out of 5.00 fF Flag question If the total cycle time for the route is 6.9 minutes (including fixed time). Calculate the 637G scraper's production (in Bank m?/hr) based on your previous calculations. Please provide your answer as a whole number in Bank m?/hr, enter the number only (do not include the unit or any spaces or commas). E.g. If your calculated answer is 123.456 Bank m?/hr then enter: 123 Answer: | Question 1 The next five questions refer to the following Information. A Caterpillar Push-Pull scraper model 637G is operating on a large earthmoving project It loads soil in one area and then travels with its load to a dumping location. You are required to calculate the scraper's production. Answer saved Marked out of 5.00 F Flag Data, performance charts and tables for the Push-Pull scraper model 6376 from the Caterpillar performance handbook, edition 41 question have been reproduced for you below. The scraper is being struck loaded under average operating conditions. Rolling resistance = 0.4 kN/t Efficiency of the driver and machine is 50 min/hr Sail density in bank = 1800 kg/m? Sail density loose = 1580 kg/m? Total fixed time = 2 minutes You should assume that the scraper is moving at a slow speed when leaving the loading and unloading areas. Use the reference tables given in your study material where appropriate. The scraper is working on a route comprising the following sections: Section Description Length (m) 1 Level turnaround and loading zone (spotting and loading) 2 Haul road, 10% down grade 500 3 Haul road, 1% up grade 250 4 Level unloading area (slowing/manoeuvre and dumping) 5 Return road, 12% up grade 400 6 Return road - level section 600 Calculate the Load Volume for the scraper in Bank m3. Please provide your answer to one decimal place in Bank m? with a number only (do not include the unit or any spaces or commas). E.g. If your calculated answer is 12.345 Bank m? then enter: 12.3 637G Rimpull-Speed-Gradeability Wheel Tractor-Scrapers . 37.25R35 Tires GROSS WEIGHT 15 20 30 40 50 60 70 90 kg x 1000 T kg x Ib x TTT 1000 1000 30 40 50 60 80 100 120 160 200 Ib x 1000 65 150 55 120 L- 45 100 35 2 30% 25% 20% 5% 20 0% TOTAL RESISTANCE (Grade plus Rolling) RIMPULL 15 6 3% 6% 10 5% 4 4% 3% 5 2 2% 5 10 15 20 25 30 35 mph 0 5 10 15 20 25 30 35 40 45 50 55 km/h SPEED KEY KEY 1 - 1st Gear Torque Converter Drive E - Empty 54 057 kg (1 19,175 lb) 2-2nd Gear Torque Converter Drive L - Loaded 91 070 kg (200,775 lb) - 3rd Gear Direct Drive - 4th Gear Direct Drive - 5th Gear Direct Drive 6 -6th Gear Direct Drive 7 -7th Gear Direct Drive 8 -8th Gear Direct Drive Edition 41 8-35Wheel Tractor-Scrapers Specifications . Tandem Powered . Push-Pull MODEL 627G 637G 657G Flywheel Power: Tractor 246/272 KW 330/365 hp 345/373 KW 462/500 hp 421/447 KW 564/600 hp Scraper 178/198 KW 239/266 hp 198/211 KW 266/283 hp 306/337 KW 410/451 hp Approx. Operating Weight (Empty) 37 922 kg 83,604 lb 51 963 kg 114,559 lb 68 384 kg 150,760 lb Scraper Capacity: Struck 12 m3 15.7 yd3 18.3 m3 24 y 24.5 m3 32 yd3 Heaped 17 m3 22 yd' 26 ma 34 yo 33.6 m 44 yd3 Rated Load 23 950 kg 52,800 lb 37 013 kg 81,600 lb 47 174 kg 104,000 lb Weight Distribution - Empty: Front 59% 59% 58% Rear 41% 41% 42% Weight Distribution - Loaded: Front 50% 50% 50% Rear 50% 50% 50% Engine Model: Tractor C15 ACERT C18 ACERT C18 ACERT Scraper C9 ACERT C9 ACERT C15 ACERT Rated Engine RPM: Tractor 1800 1800 1800 Scraper 2000 2000 1800 Displacement: Tractor 15.2 L 928 In3 18.1 L 1105 In 18.1 L 1105 In Scraper 8.8 L 538 In3 8.8 L 538 Ins 15.2 L 928 In' Top Speed (Loaded) 51 km/h 32 mph 53 km/h 33 mph 53 km/h 33 mph 180 Curb-to-Curb Turning Width 11.7 m 38'5" 12.2 m 40'1" 14.2 m 46'7" Tires - Tractor Drive 33.25R29**E3 37.25R35+*E3 40.5/75R39**E3 Scraper 33.25R29* *E3 37.25R35#*E3 40.5/75R39* *E3 Width of Cut 3.02 m 9'11 " 3.51 m 11'6" 3.85 m 12'8" Maximum Depth of Cut 333 mm 13.1 " 437 mm 17" 440 mm 17.3" Maximum Depth of Spread 522 mm 20.6" 480 mm 18.9" 660 mm 26" Fuel Tank Refill Capacity: Tractor Scraper 1105 L 292 U.S. gal 1268 L 335 U.S. gal 1597 L 424 U.S. gal GENERAL DIMENSIONS: Height to Top of Scraper 3.81 m 12'6" 4.18 m 13'9" 4.62 m 15'2' Wheelbase 7.72 m 25'4" 8.77 m 28'9 9.96 m 32'8' Overall Length 12.88 m 42'3 14.71 m 4813" 16.2 m 5317" Overall Width 3.58 m 11'9 3.94 m 12'11" 4.35 m 14'4" Shipping Width (Draft Arm on Inside of Bowl) 3.63 m 11'11" 3.91 m 12'10" Scraper Tread 2.23 m 7'4 2.46 m 2.81 m Tractor Tread 2.20 m 713" 2.46 m 2.63 m B'8" PUSH-PULL GENERAL DIMENSIONS: Operating Weight (Empty)
