Question: Please answer both question Minimize the function f(a,b,c,d) given by the K-map below. ab 0001 11 10 cd 00 1 o 0 1 01 0

Please answer both question Please answer both question Minimize the function f(a,b,c,d) given by the K-map

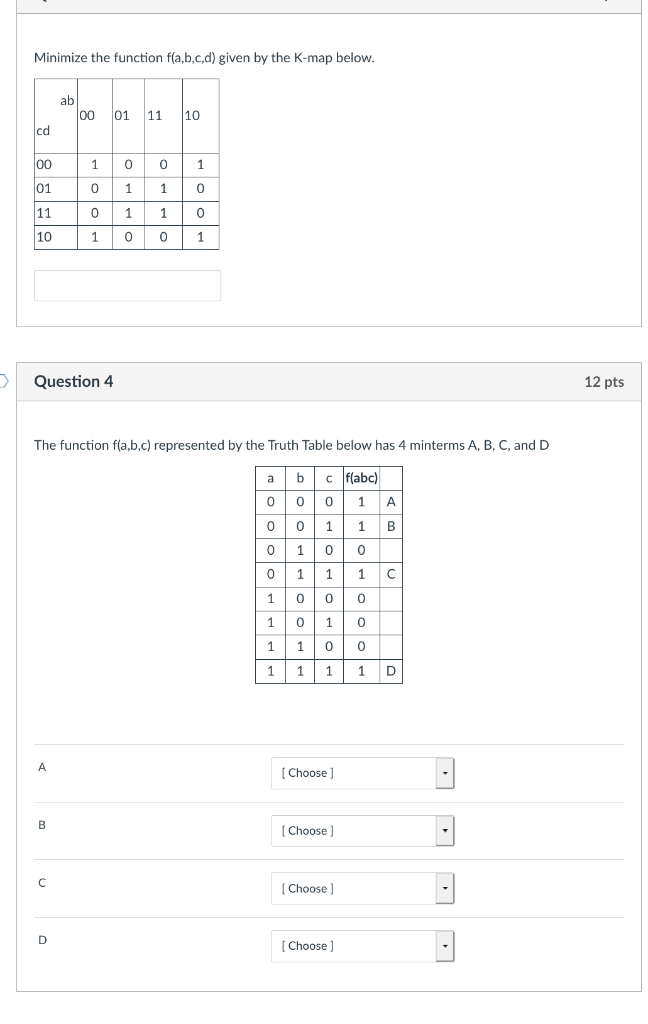

Minimize the function f(a,b,c,d) given by the K-map below. ab 0001 11 10 cd 00 1 o 0 1 01 0 0 1 1 0 1 1 11 0 10 1 0 0 1 Question 4 12 pts The function f(a,b,c) represented by the Truth Table below has 4 minterms A, B, C, and D ab cflabc) 0 0 0 1 0 0 1 1 B 0 1 0 0 0 1 1 1 1 0 0 0 1 0 1 0 1 1 0 o 11 1 1 D A [Choose ] B [Choose) [Choose D [Choose ]

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
