Please Answer each image with the corresponding question #1 through #7 . Each picture has it's question written below. (Example: Photo with #1 is question starting with #1) Solve the 7 questions:

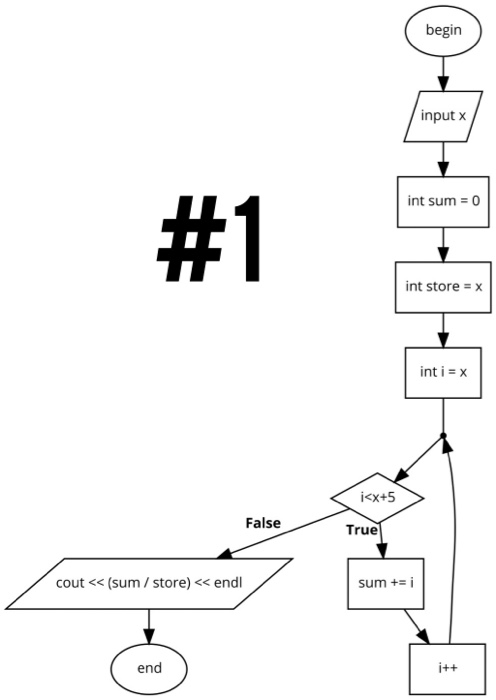

( Image #1 ) question below:

#1 What is the output if 17 is entered as input for x?

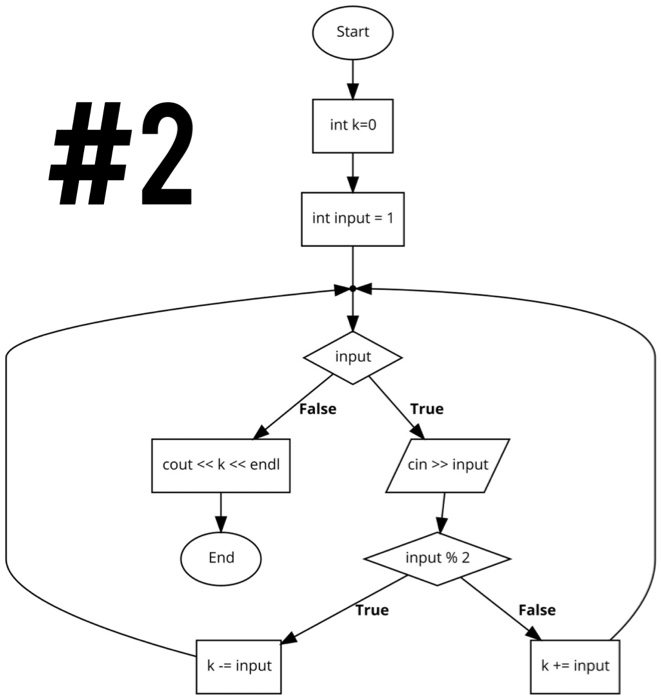

( Image #2 ) question below:

#2 Which of the following input sequences below will result in an output of 20?

Choose the Correct Answer

A. 1, 0, 22, 0, 9, 4, 1, 6, 0

B. 8, 4, 5, 10, 1, 4, 0

C. 9, 9, 9, 5, 20, 0

D. 2, 4, 10, 1, 8, 0

E. 3, 12, 5, 16

F. 2, 3, 20, 5, 16, 3, 9, 0

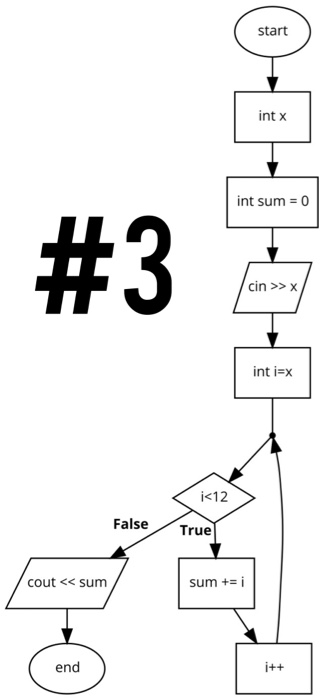

(Image #3 ) question below:

#3 What is the output if the input for x is 5?

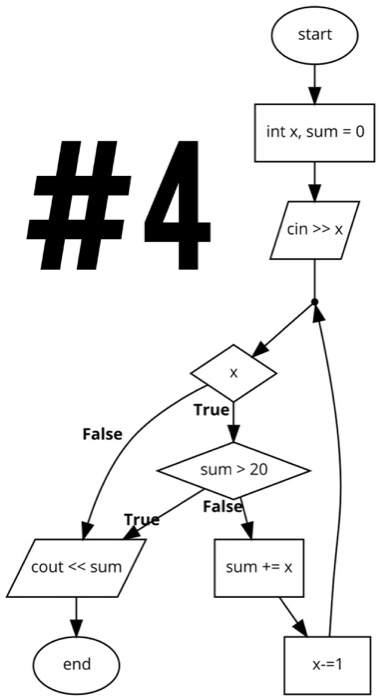

(Image #4 ) question below:

#4 Given the flow chart below, what are the output for the following inputs?

Input 8 = ?

Input 5 = ?

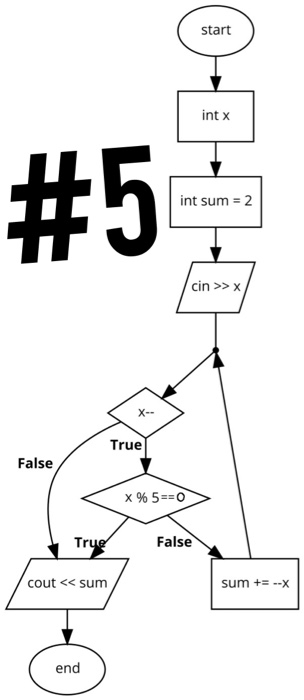

(Image #5 ) question below:

#5 What is the output to the flow chart is 10 is entered as input?

Choose the Correct Answer

A. 10

B. 18

C. 16

D. 14

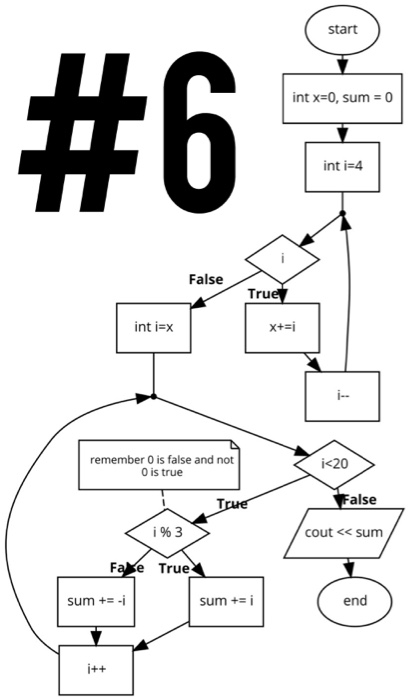

( Image #6 ) question below:

#6 What is the output of the following flow chart?

( Image #7 ) question below:

#7 What is the output if the number input is 2?

begin input x int sum = 0 0-1--4-17 int store = x int i = x > input End input % 2 > True False k -= input k += input start int x int sum = 0 #3 cin >> 0-0-0-0-0 # e-lh. B int i=x > True False sum > 20 False cout > True False True False cout
