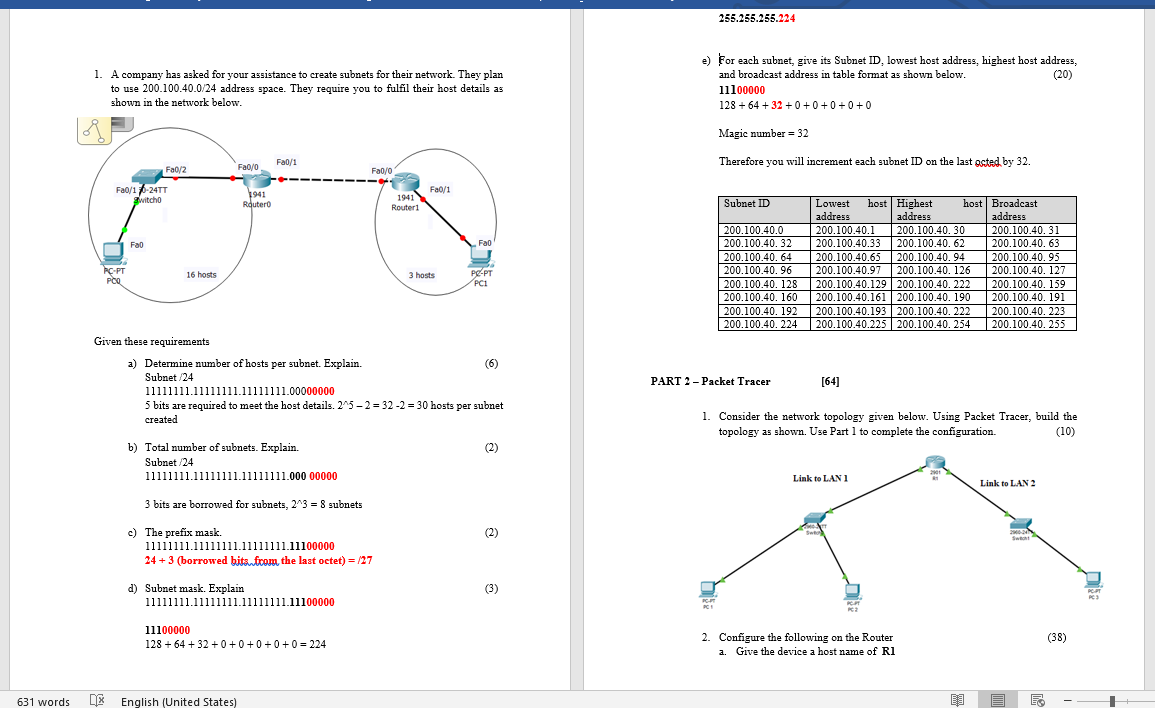

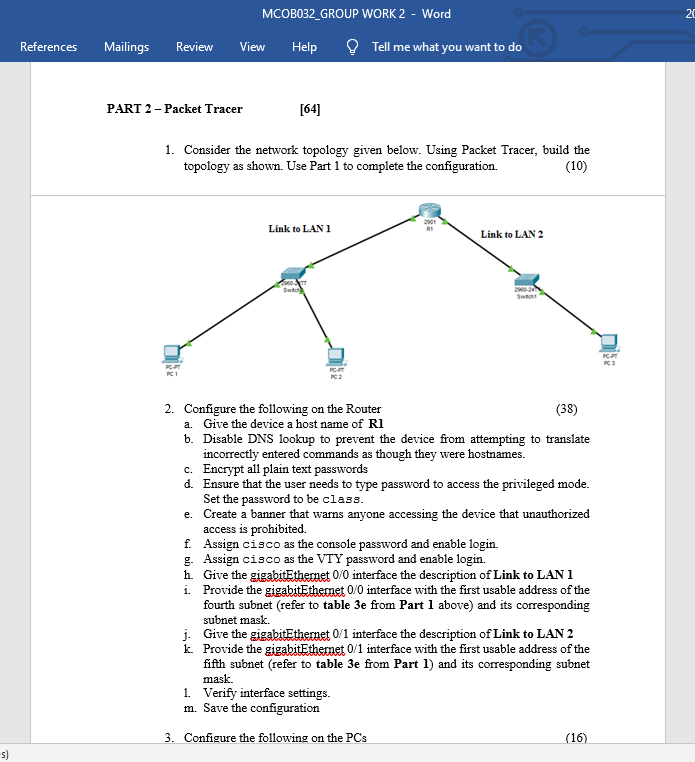

MCOB032_GROUP WORK 2 - Word 20 References Mailings Review View Help Tell me what you want to do PART 2 - Packet Tracer [64] 1. Consider the network topology given below. Using Packet Tracer, build the topology as shown. Use Part 1 to complete the configuration. (10) Link to LAN 1 2001 RI Link to LAN 2 SM 2. Configure the following on the Router (38) a. Give the device a host name of RI b. Disable DNS lookup to prevent the device from attempting to translate incorrectly entered commands as though they were hostnames. c. Encrypt all plain text passwords d. Ensure that the user needs to type password to access the privileged mode. Set the password to be class. e. Create a banner that warns anyone accessing the device that unauthorized access is prohibited. f. Assign cisco as the console password and enable login g. Assign cisco as the VTY password and enable login. h. Give the gigabitEthernet 0/0 interface the description of Link to LAN 1 i. Provide the gigabitEthernet 0/0 interface with the first usable address of the fourth subnet (refer to table 3e from Part 1 above) and its corresponding subnet mask. j. Give the gigabitEthemet 0/1 interface the description of Link to LAN 2 k Provide the gigabitEthernet 0/1 interface with the first usable address of the fifth subnet (refer to table 3e from Part 1) and its corresponding subnet mask. 1. Verify interface settings. m. Save the configuration 3. Configure the following on the PCs (16) 5) 255.255.255.224 1. A company has asked for your assistance to create subnets for their network. They plan to use 200.100.40.0/24 address space. They require you to fulfil their host details as shown in the network below. e) or each subnet, give its Subnet ID, lowest host address, highest host address, and broadcast address in table format as shown below. (20) 11100000 128 +64 + 32 +0+0+0+0+ 0 Magic number = 32 Fa0/0 Fa0/1 Fa0/2 Therefore you will increment each subnet ID on the last osted by 32. Fa0/0 Fa0/10-24TT switcho Fa0/1 / 1941 Router 1941 Routeri Subnet ID address Fap Fao Lowest host Highest host Broadcast address address 200.100.40.1 200.100.40.30 200.100.40.31 200.100.40.33 200.100.40.62 200.100.40.63 200.100.40.65 200.100.40.94 200.100.40.95 200.100.40.9 200.100.40. 126 200.100.40. 127 200.100.40.129 200.100.40.222 200.100.40. 159 200.100.40.161 | 200.100.40. 190 200.100.40. 191 200.100.40.193 200.100.40.222 200.100.40.223 200.100.40.225 200.100.40.254 200.100.40.255 AC-PT POO 16 hosts 3 hosts 200.100.40.0 200.100.40.32 200.100.40.64 200.100.40.96 200.100.40. 128 200.100.40. 160 200.100.40. 192 200.100.40.224 PP-PT PC1 Given these requirements a) Determine number of hosts per subnet. Explain. (6) Subnet/24 11111111.1111111111111111.00000000 5 bits are required to meet the host details. 2^5 - 2 = 32 -2 = 30 hosts per subnet created PART 2-Packet Tracer [64] 1. Consider the network topology given below. Using Packet Tracer, build the topology as shown. Use Part 1 to complete the configuration. (10) (2) b) Total number of subnets. Explain. Subnet/24 11111111.11111111.11111111.000 00000 Link to LAN 1 Link to LAN 2 3 bits are borrowed for subnets, 243 = 8 subnets w Sw c) The prefix mask. 11111111.11111111.11111111.11100000 24 + 3 (borrowed bits from the last octet) = /27 d) Subnet mask. Explain 11111111.11111111.11111111.11100000 (3) PART PC3 11100000 128 +64 + 32 + 0 + 0 + 0 + 0 + 0 = 224 2. Configure the following on the Router a. Give the device a host name of Ri (38) 631 words English (United States)
