Question: please answer the question In the figure find the equivalent capacitance of the combination. Assume that Cq = 11.5 JF, C2 = 6.89 pF, and

please answer the question

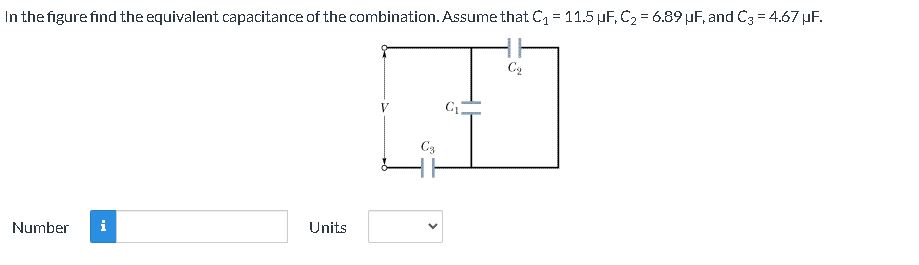

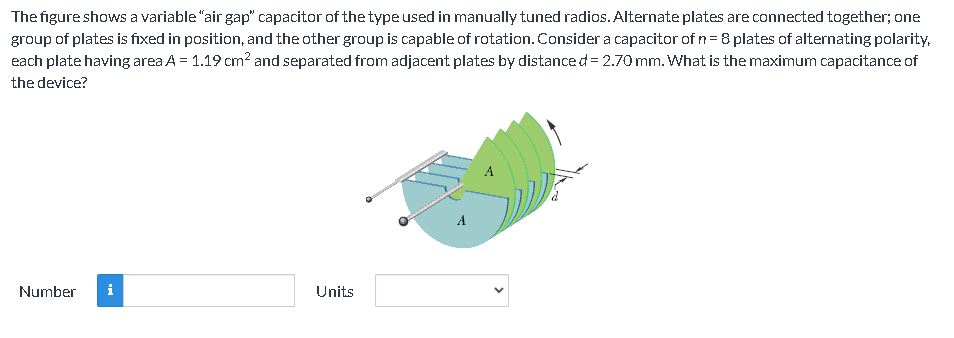

In the figure find the equivalent capacitance of the combination. Assume that Cq = 11.5 JF, C2 = 6.89 pF, and C3 = 4.67 JF. CI Ca Number Units vTheflgureshows a variable"airgap\" capacitor ofthetype used in manuallytuned radios.Alternate plates are connected together; one group of plates is xed in position, and the othergroup is capable of rotation. Consider a capacitor of n = 8 plates of alternating polarity, each plate having areaA = 1.19 cm2 and separated from adjacent plates by distanced = 2.70 mm.What is the maximum capacitance of the device? Number Units | V
