Please answer these questions below with Router Course?

Question #121Topic 1 What is the role of disaggregation in controller-based networking? A. It divides the control-plane and data-plane functions. B. It streamlines traffic handling by assigning individual devices to perform either Layer 2 or Layer 3 functions C. It summarizes the routes between the core and distribution layers of the network topology D. It enables a network topology to quickly adjust from a ring network to a star network Question #122Topic 1 What is a function performed by a web server? A. send and retrieve email from client devices B. securely store files for FTP access C. authenticate and authorize a user's identity D. provide an application that is transmitted over HTTP Question #123Topic 1

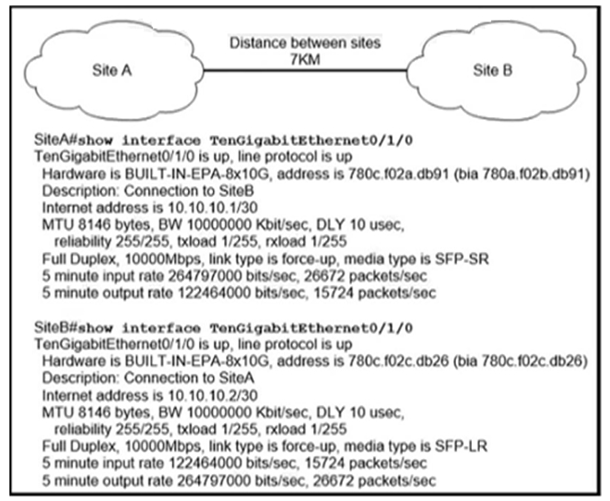

Refer to the exhibit. Site A was recently connected to site B over a new single-mode fiber path. Users at site A report intermittent connectivity issues with applications hosted at site B. What is the reason for the problem? A. Physical network errors are being transmitted between the two sites. B. Heavy usage is causing high latency. C. The wrong cable type was used to make the connection. D. An incorrect type of transceiver has been inserted into a device on the link Question #124Topic 1 Which protocol uses the SSL? A. SSH B. HTTPS C. HTTP D. Telnet Question #125Topic 1 Why is UDP more suitable than TCP for applications that require low latency such as VoIP? A. UDP reliably guarantees delivery of all packets: TCP drops packets under heavy load B. UDP uses sequencing data for packets to arrive in order TCP offers the capability to receive packets in random order C. TCP uses congestion control for efficient packet delivery: UDP uses flow control mechanisms for the delivery of packets D. TCP sends an acknowledgement for every packet received: UDP operates without acknowledgments Question #126Topic 1 What are the two functions of SSIDs? (Choose two.) A. uses the maximum of 32 alphanumeric characters B. controls the speed of the Wi-Fi network C. used exclusively with controller-based Wi-Fi networks D. supports a single access point E. broadcasts by default Question #127Topic 1 Which two characteristics describe the access layer in a three-tier network architecture? (Choose two.) A. serves as the network aggregation point B. physical connection point for a LAN printer C. designed to meet continuous redundant uptime requirements D. layer at which a wireless access point connects to the wired network E. provides a boundary between Layer 2 and Layer 3 communications Question #128Topic 1 Which PoE mode enables powered-devices detection and guarantees power when the device detected? A. auto B. static C. dynamic D. active Question #129Topic 1

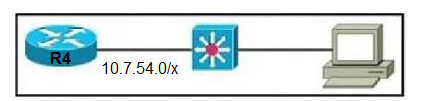

Refer to the exhibit. The router has been configured with a super net to accommodate the requirements for 380 users on a Subnet. The requirement already considers 30% future growth. Which configuration verifies the IP subnet on router R4? A. Subnet: 10.7.54.0 Subnet mask: 255.255.128.0 Broadcast address: 10.5.55.255 Usable IP address range: 10.7.54.1 " 10.7.55.254 B. Subnet: 10.7.54.0 Subnet mask: 255.255.255.0 Broadcast address: 10.7.54.255 Usable IP address range: 10.7.54.1 " 10.7.55.254 C. Subnet: 10.7.54.0 Subnet mask: 255.255.254.0 Broadcast address: 10.7.54.255 Usable IP address range: 10.7.54.1 " 10.7.55.254 D. Subnet: 10.7.54.0 Subnet mask: 255.255.254.0 Broadcast address: 10.7.55.255 Usable IP address range: 10.7.54.1 " 10.7.55.254 Question #130Topic 1

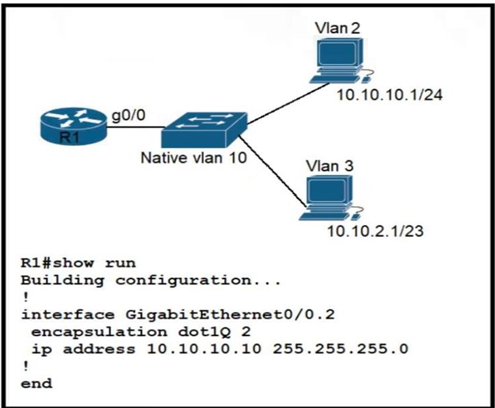

Refer to the exhibit. Configurations for the switch and PCs are complete. Which configuration must be applied so that VLANs 2 and 3 communicate back and forth? A. interface GigabitEthernet0/0 ip address 10.10.2.10 255.255.252.0 B. interface GigabitEthernet0/0.10 encapsulation dot1Q 3 ip address 10.10.2.10 255.255.254.0 C. interface GigabitEthernet0/0.3 encapsulation dot1Q 3 native ip address 10.10.2.10 255.255.252.0 D. interface GigabitEthernet0/0.3 encapsulation dot1Q 10 ip address 10.10.2.10 255.255.255.252

SiteAushow interface Tengigabitetherneto/1/0 TenGigabitEthernet0/1/0 is up, line protocol is up Hardware is BUILT-IN-EPA.8x10G, address is 780c.102a.db91 (bia 780a.102b.db91) Description: Connection to SiteB Internet address is 10.10.10.1/30 MTU 8146 bytes, BW 10000000 Kbit/sec, DLY 10 usec, reliability 255/255, txload 1/255, rxload 1/255 Full Duplex, 10000Mbps, link type is force-up, media type is SFP-SR 5 minute input rate 264797000 bits/sec, 26672 packets/sec 5 minute output rate 122464000 bits/soc, 15724 packots/soc SiteBHshow interface Tengigabitgtherneto/1/0 TenGigabitEthernet0/1/0 is up, line protocol is up Hardware is BUILT-IN-EPA-8x10G, address is 780c.102c.db26 (bia 780c.102c.db26) Description: Connection to SiteA Internet address is 10.10.10.2/30 MTU 8146 bytes, BW 10000000 Kbit/sec, DLY 10 usec, roliability 255/255, txload 1/255, rxload 1/255 Full Duplex, 10000Mbps, link type is force-up, media type is SFP-LR 5 minute input rate 122464000bits/sec,15724 packets/sec 5 minute output rate 264797000 bits/sec, 26672 packets/sec Native vlan 10 R1\#show run Building configuration. .. ! enterface Gigabitethernet0/0.2 ip address 10.10.10.10255.255.255.0 ! 250.10.1/23 end
