Please answer these questions.

Problem 1.

For this problem, basically you need to add those weeks at the end of the 8th week provided on the problem and you need to draw line of balance at the end of the 10th week. If you did not understand the problem it says 20 units were completed in weeks 6, 7, 6, and 9 and it goes on...

Problem 2.

Draw a Ghantt Chart for this problem.

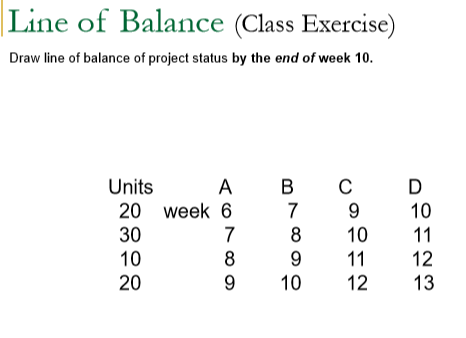

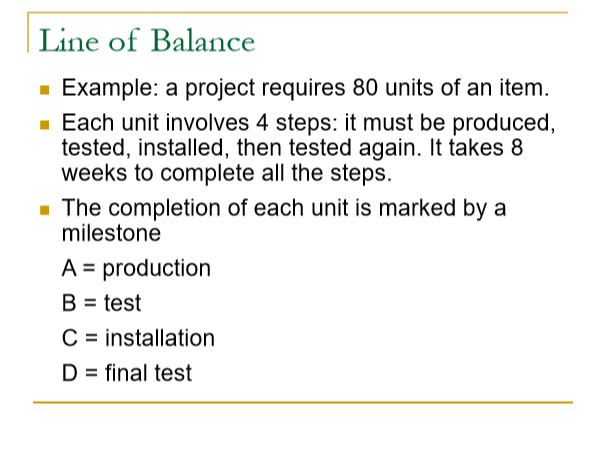

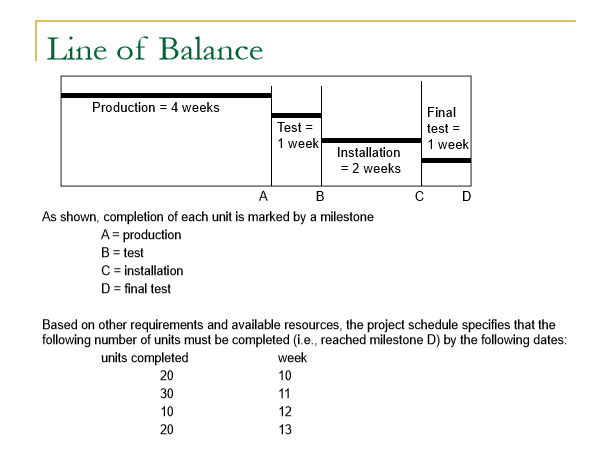

Line of Balance . Example: a project requires 80 units of an item. Each unit involves 4 steps: it must be produced, tested, installed, then tested again. It takes 8 weeks to complete all the steps. The completion of each unit is marked by a milestone A = production B = test C = installation D = final test Line of Balance Production = 4 weeks Test = 1 week Final test = 1 week Installation = 2 weeks D As shown, completion of each unit is marked by a milestone A=production B = test C = installation D = final test Based on other requirements and available resources, the project schedule specifies that the following number of units must be completed (ie, reached milestone D) by the following dates: units completed week 20 10 30 13 Line of Balance (Class Exercise) Draw line of balance of project status by the end of week 10. Units A 20 week 6 30 7 - 8 9 B 7 8 C 9 10 11 12 D 10 11 12 13 7 10 Activity Duration Immediate Predecessors D E B, D C, D E F
