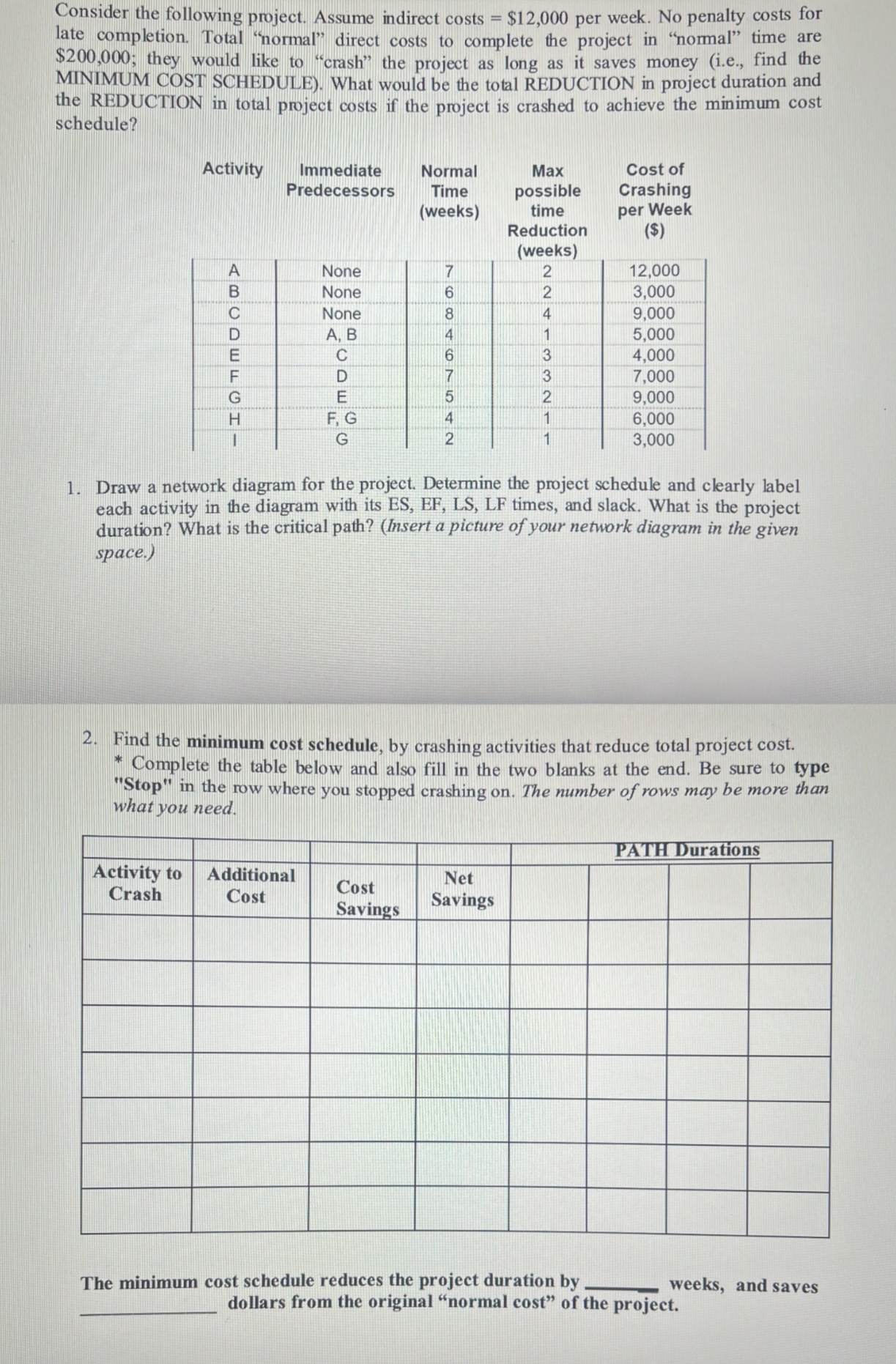

Question: Please complete Question 1 . Drawing the network diagram for the project. Determine the project schedule and label each activity in the diagram with its

Please complete Question

1 .

Drawing the network diagram for the project. Determine the project schedule and label each activity in the diagram with its ES

,

,

LF times and slack. What is the project duration? What is the critical path?

(

Inset a picture of the network diagram

)

QUESTION

2 .

(

COMPLETE THE TABLE IN SAME FORMAT AS BELOW

)

Find the minimum cost schedule, by crashing activities that reduce total project cost. Be sure to type "stop" in the row where you stopped crashing on

.

QUESTION

3 .

Fill in the blanks at the very bottom with the answes you got.

Please complete Question 1. Drawing the network diagram for the project.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Consider the following project. Assume indirect costs \ ( = \ $ 1 2 , 0 0 0 \ ) per week. No penalty costs for late completion. Total "normal" direct costs to complete the project in "normal" time...

Submit a Word file named as FirstNameLastName_Part1.docx. Attach the MS project file too because I need to check your project file and figure out the possible errors. Use a Q&A format to answer the...

Activity A Predecessor Duration (months) Total cost '000 B 8 100 2 A 75 D 3 A 135 E 7. B 70 5 F 160 9 G 255 H CD D D, E GII 30 AN I 90 3 55 The Overheads on this project are 5,000 per month. b) Draw...

Note: FS refers to a Finish-to-Start lag. l. The project begins January 2, 2015. And The following holidays are observed: January l, Martin Luther King Day (third Monday in January), Memorial Day...

Question 2 [20] The All-Out Gauteng Quantity Surveyors office relocation project, "Project: Upscale", consisting of eight activities, is described as follows: Description of project Activity A B C D...

The High-Flight DC Graphic Novels special print production project, "Project: Retro, consisting of 13 activities, is described as follows: Description of project Activity A A Activity time (days)...

The High-Flight DC Graphic Novels special print production project. "Project: Retro" consisting of 13 activities, is described as follows: a) prepare a network diagram for this project (use the AON...

Question 5 [20] The High-Flight DC Graphic Novels special print production project, "Project: Retro", consisting of 13 activities, is described as follows: Description of project Activity Activity...

ACTIVITY TIME 1 A 2 B 3 C 8 D 6 E 9 F 7 G 1 H 10 I 12 J 2 K 1 Draw the network diagram of the project (with timing). Determine the critical path. Determine the (EF, ES) and (LS, LF) And slack....
