Question: please create a drawing using these guidelines in solidworksTutorial 4 Create a top and front view of a block that is L 5 ' '

please create a drawing using these guidelines in solidworksTutorial 4

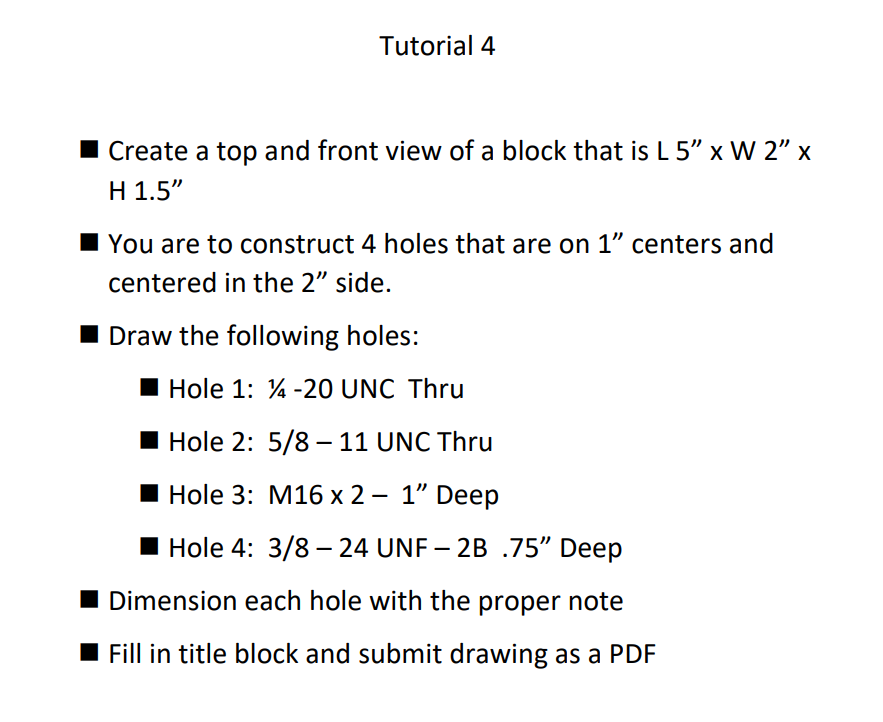

Create a top and front view of a block that is L5''W2''x
H 1.5"
You are to construct 4 holes that are on 1" centers and
centered in the 2" side.
Draw the following holes:
Hole 1: 14-20 UNC Thru
Hole 2: 5/8-11 UNC Thru
Hole 3: M16 x 2-1" Deep
Hole 4: 3/8-24 UNF-2B.75" Deep
Dimension each hole with the proper note
Fill in title block and submit drawing as a PDF
