Question: please do it quick 30min A Class Diagram has been provided for below. Answer the following questions based on the given diagram. MedicalPerson Alert id

please do it quick 30min A Class Diagram has been provided for please do it quick 30min

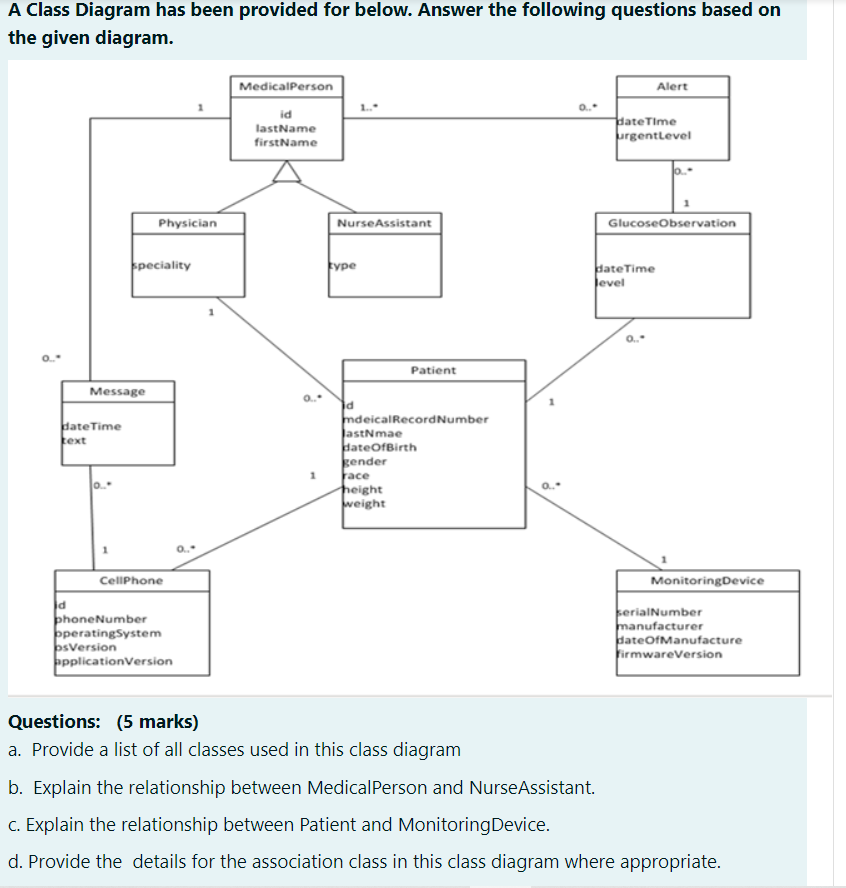

A Class Diagram has been provided for below. Answer the following questions based on the given diagram. MedicalPerson Alert id lastName firstName HateTime prgentLevel Physician Nurse Assistant GlucoseObservation speciality Type bate Time level Patient Message HateTime text ideical Record Number astNmae HateOfBirth gender race height weight 1 Monitoring Device CellPhone Id phone Number bperating System sVersion pplication Version kerialNumber manufacturer bateOfManufacture Firmware Version Questions: (5 marks) a. Provide a list of all classes used in this class diagram b. Explain the relationship between Medical Person and Nurse Assistant. C. Explain the relationship between Patient and Monitoring Device. d. Provide the details for the association class in this class diagram where appropriate
