please draw and label the process first (answers are given)

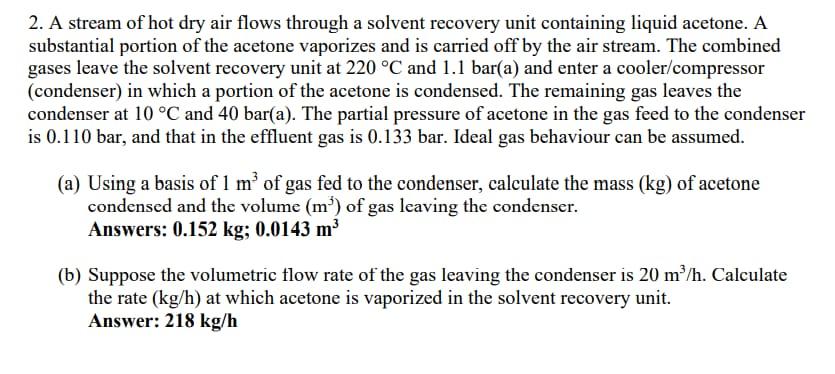

2. A stream of hot dry air flows through a solvent recovery unit containing liquid acetone. A substantial portion of the acetone vaporizes and is carried off by the air stream. The combined gases leave the solvent recovery unit at 220C and 1.1 bar(a) and enter a cooler/compressor (condenser) in which a portion of the acetone is condensed. The remaining gas leaves the condenser at 10C and 40 bar(a). The partial pressure of acetone in the gas feed to the condenser is 0.110bar, and that in the effluent gas is 0.133 bar. Ideal gas behaviour can be assumed. (a) Using a basis of 1m3 of gas fed to the condenser, calculate the mass (kg) of acetone condensed and the volume (m3) of gas leaving the condenser. Answers: 0.152kg;0.0143m3 (b) Suppose the volumetric flow rate of the gas leaving the condenser is 20m3/h. Calculate the rate (kg/h) at which acetone is vaporized in the solvent recovery unit. Answer: 218kg/h
