Question: Please ensure clear hand writing or Typing Example 5.3. Fig. 5.30 shows the lay out of a quick retum mechanism of the oscillating lim tope,

Please ensure clear hand writing or Typing

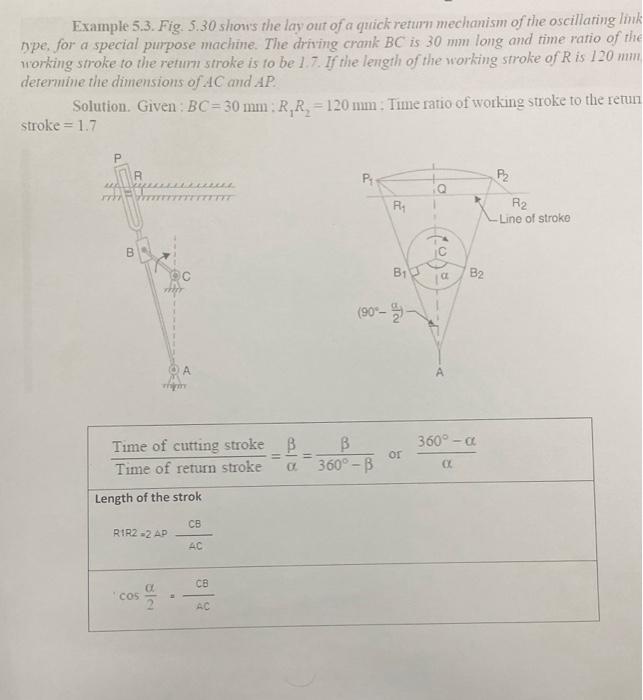

Example 5.3. Fig. 5.30 shows the lay out of a quick retum mechanism of the oscillating lim tope, for a special purpore machine. The driving enak BC is 30mm long and time ratio of th working smoke to the retum stroke is to be 1. 7. If the length of the working stroke of R is 120mm derermine the dimensions of AC and AP. Solution. Given : BC=30mm:R1R2=120mm. Time ratio of working stroke to the retu stroke =1.7 Example 5.3. Fig. 5.30 shows the lay out of a quick retum mechanism of the oscillating lim tope, for a special purpore machine. The driving enak BC is 30mm long and time ratio of th working smoke to the retum stroke is to be 1. 7. If the length of the working stroke of R is 120mm derermine the dimensions of AC and AP. Solution. Given : BC=30mm:R1R2=120mm. Time ratio of working stroke to the retu stroke =1.7

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
