Question: Please explain. Thank you. Determine all the Q output waveforms for the 4-bit parallel register, when the inputs are as shown in Figure. 9. DO

Please explain. Thank you. Determine all the Q output waveforms for

Please explain. Thank you.

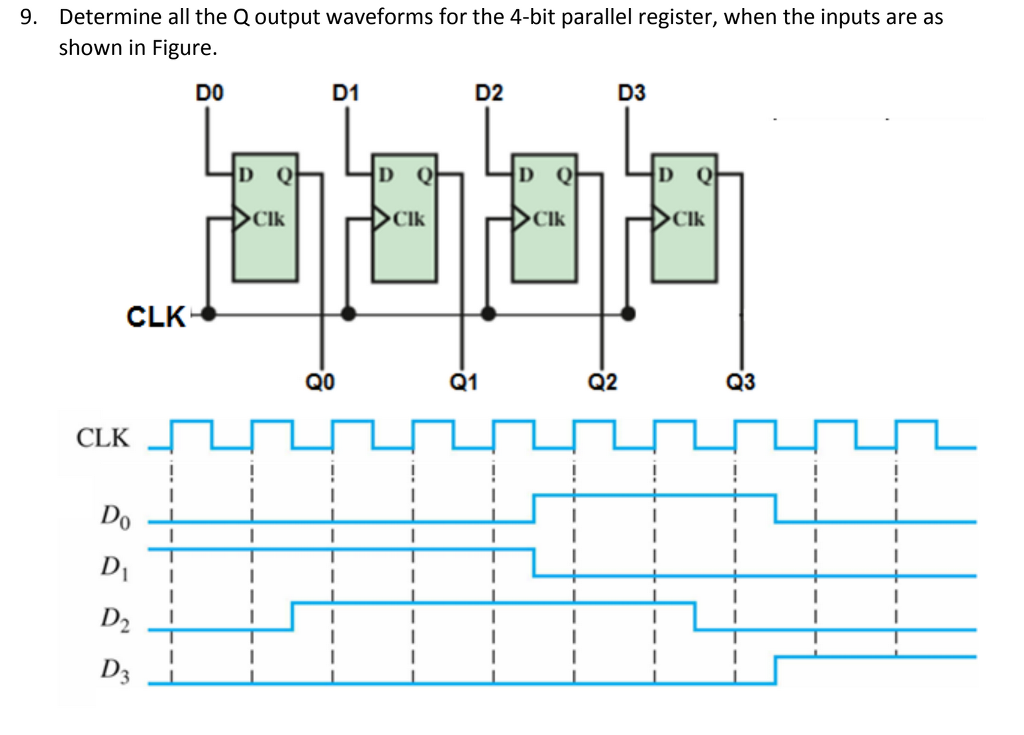

Determine all the Q output waveforms for the 4-bit parallel register, when the inputs are as shown in Figure. 9. DO D2 D3 Clk CLK Q0 Q1 Q2 Q3 CLK Do- D2I
