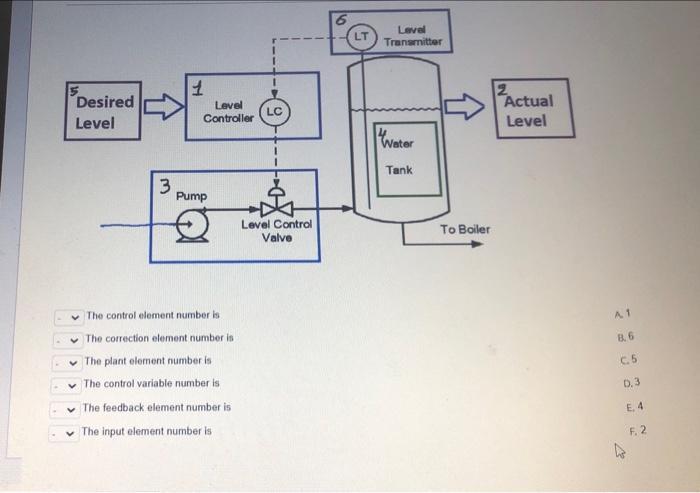

Question: Desired Level 3 1 Level Controller Pump The control element number is The correction element number is The plant element number is The control

Desired Level 3 1 Level Controller Pump The control element number is

Desired Level 3 1 Level Controller Pump The control element number is The correction element number is The plant element number is The control variable number is The feedback element number is The input element number is LC Level Control Valve Level Transmitter Water Tank To Boiler 2 Actual Level A1 8.6 C.5 D.3 E. 4 F. 2

Step by Step Solution

★★★★★

3.47 Rating (157 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
