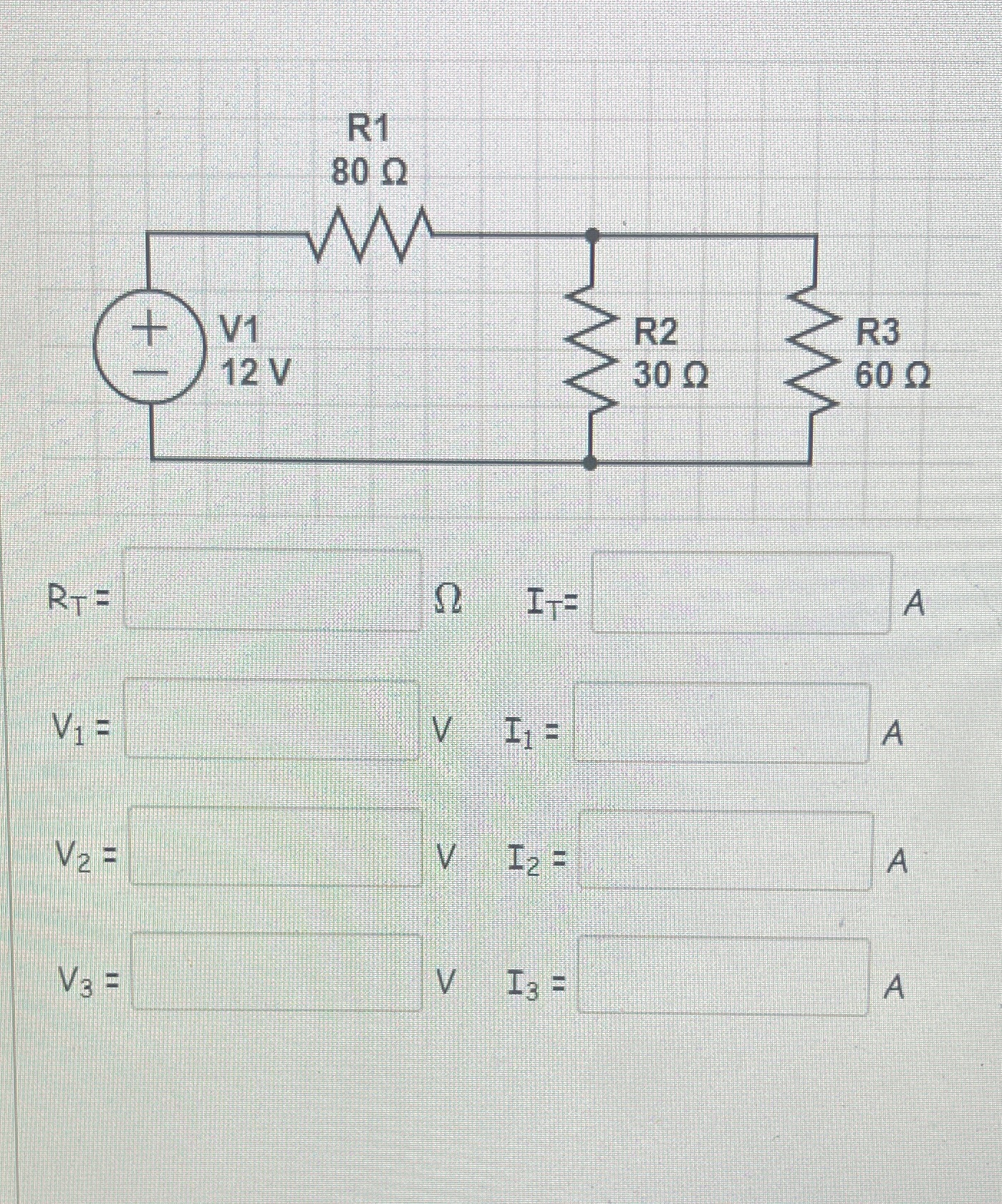

Question: Please fill in the table R1 80 Q + V1 R2 R3 12 V 30 Q 60 Q RT = 0 IT= A V1 =

Please fill in the table R1 80 Q + V1 R2

Please fill in the table

R3 12 V 30 Q 60 Q RT = 0 IT= A

R1 80 Q + V1 R2 R3 12 V 30 Q 60 Q RT = 0 IT= A V1 = V I= A Va = V I2 = A V I3 = A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
