Please fill the code under the "YOUR CODE HERE" comment, I will be testing the answer given and upvoting/downvoting accordingly so please dont answer with rubbish

# Traditional Matrix Multiply program .data matrix_a: .word 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 .word 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24 .word 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36 .word 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48 .word 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60 .word 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72 .word 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84 .word 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96 .word 97, 98, 99,100,101,102,103,104,105,106,107,108 .word 109,110,111,112,113,114,115,116,117,118,119,120 .word 121,122,123,124,125,126,127,128,129,130,131,132 .word 133,134,135,136,137,138,139,140,141,142,143,144

matrix_b: .word 133,134,135,136,137,138,139,140,141,142,143,144 .word 121,122,123,124,125,126,127,128,129,130,131,132 .word 109,110,111,112,113,114,115,116,117,118,119,120 .word 97, 98, 99,100,101,102,103,104,105,106,107,108 .word 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96 .word 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84 .word 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72 .word 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60 .word 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48 .word 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36 .word 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24 .word 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

matrix_c: .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 .word 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0

bs: .word 3 n: .word 12

nline: .asciiz " " #Define new line string sp: .asciiz " " msga: .asciiz "Matrix A is: " msgb: .asciiz "Matrix B is: " msgc: .asciiz "Matrix C=A*B is: "

.text .globl main main:

la $s0, bs lw $s0, 0($s0) la $s1, n lw $s1, 0($s1) la $s2, matrix_a la $s3, matrix_b la $s4, matrix_c

la $a0, msga la $a1, matrix_a jal PRINT_MAT la $a0, msgb la $a1, matrix_b jal PRINT_MAT

# YOUR CODE HERE

# END CODE

la $a0, msgc la $a1, matrix_c jal PRINT_MAT

# Exit li $v0,10 syscall

PRINT_MAT: li $v0,4 syscall addi $a2,$0,0 PL4: bge $a2,$s1,PL1 addi $a3,$0,0 PL3: bge $a3,$s1,PL2

lw $a0,0($a1) li $v0,1 syscall la $a0,sp li $v0,4 syscall addi $a1,$a1,4 addi $a3,$a3,1 b PL3

PL2: addi $a2,$a2,1 la $a0,nline li $v0,4 syscall b PL4 PL1: jr $ra

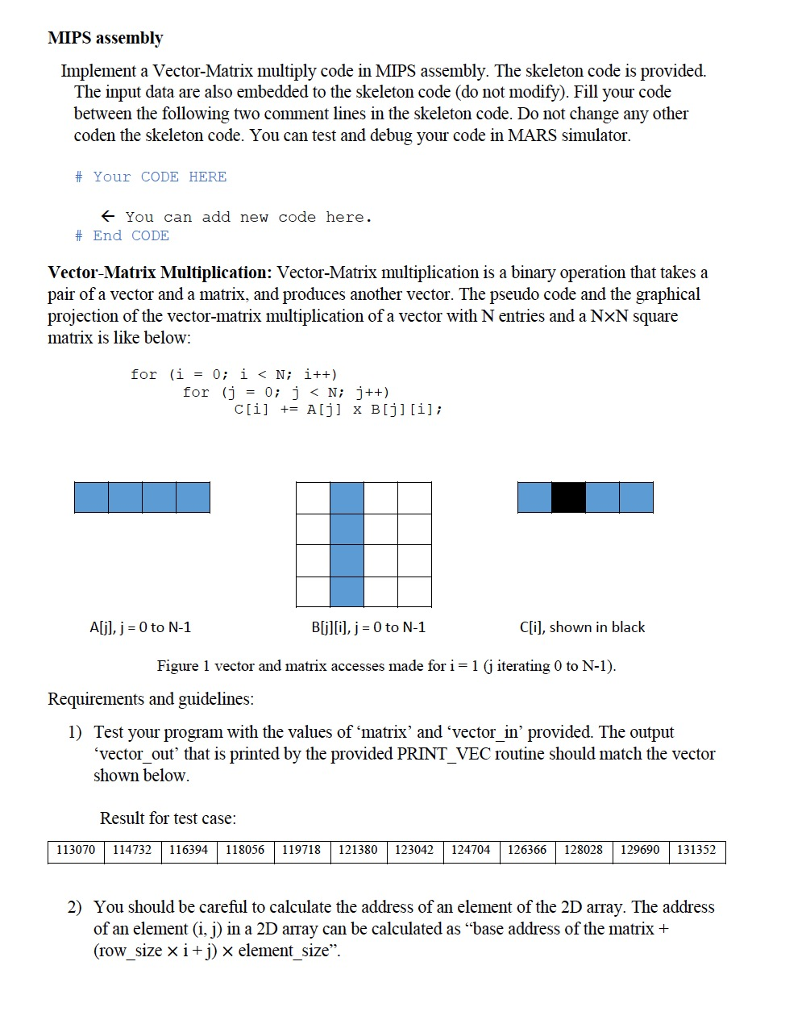

MIPS assembly Implement a Vector-Matrix multiply code in MIPS assembly. The skeleton code is provided. The input data are also embedded to the skeleton code (do not modify). Fill your code between the following two comment lines in the skeleton code. Do not change any other coden the skeleton code. You can test and debug your code in MARS simulator. # Your CODE HERE + You can add new code here. # End CODE Vector-Matrix Multiplication: Vector-Matrix multiplication is a binary operation that takes a pair of a vector and a matrix, and produces another vector. The pseudo code and the graphical projection of the vector- matrix multiplication of a vector with N entries and a NXN square matrix is like below: for (i = 0; i
