Question: please help idnetify which gate the seconds one is. unsure of which one it is Identify the logic gate corresponding to each of the following

please help idnetify which gate the seconds one is. unsure of which one it is

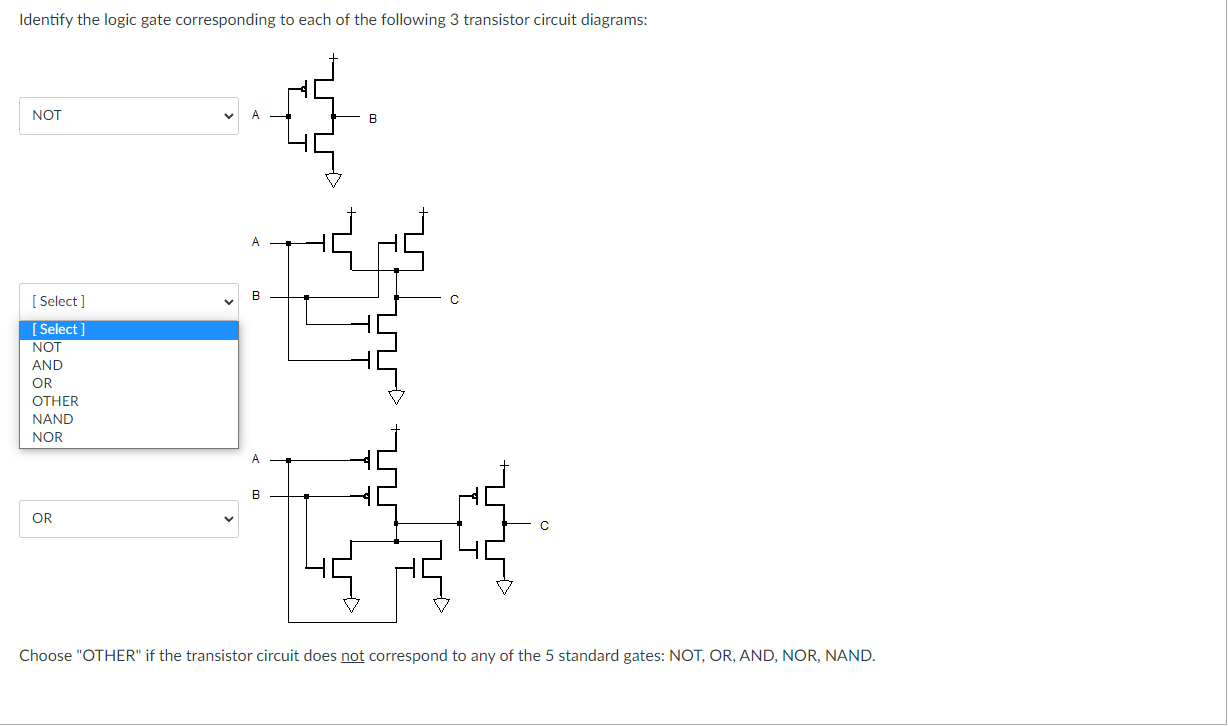

Identify the logic gate corresponding to each of the following 3 transistor circuit diagrams: Choose "OTHER" if the transistor circuit does not correspond to any of the 5 standard gates: NOT, OR, AND, NOR, NAND. Identify the logic gate corresponding to each of the following 3 transistor circuit diagrams: Choose "OTHER" if the transistor circuit does not correspond to any of the 5 standard gates: NOT, OR, AND, NOR, NAND

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
