Question: please help me ASAP Problem 1. A beam has a cross section shown below, designed to carry a bending moment Mx. a) Determine the position

please help me ASAP Problem 1. A beam has a cross

please help me ASAP

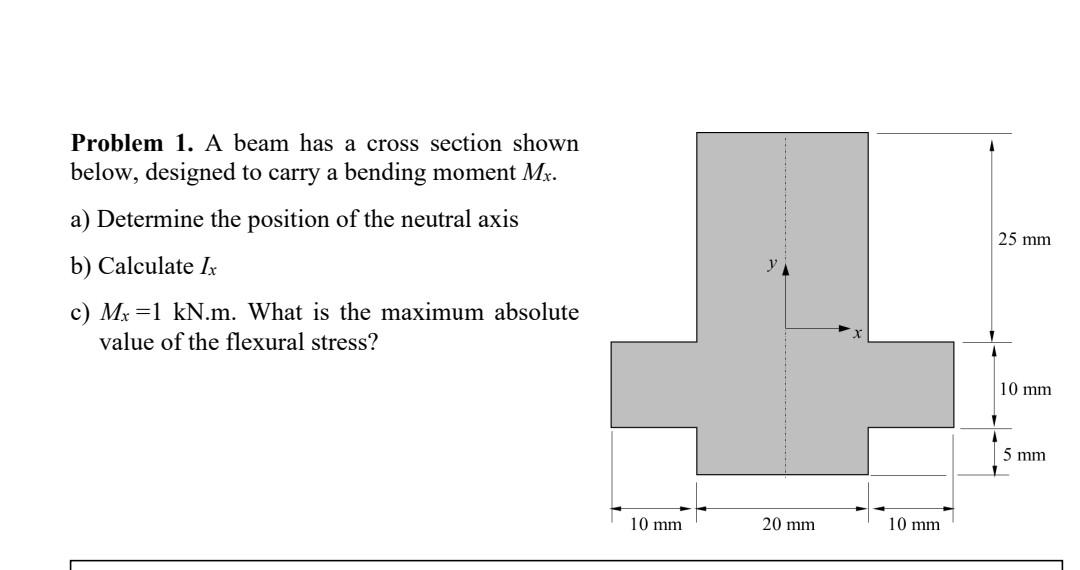

Problem 1. A beam has a cross section shown below, designed to carry a bending moment Mx. a) Determine the position of the neutral axis b) Calculate Ix c) Mx=1kN.m. What is the maximum absolute value of the flexural stress

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
