Question: Please help me find the solution. Fig. 8 shows a cross section of a concrete gravity dam. Please check the stability of this dam against

Please help me find the solution.

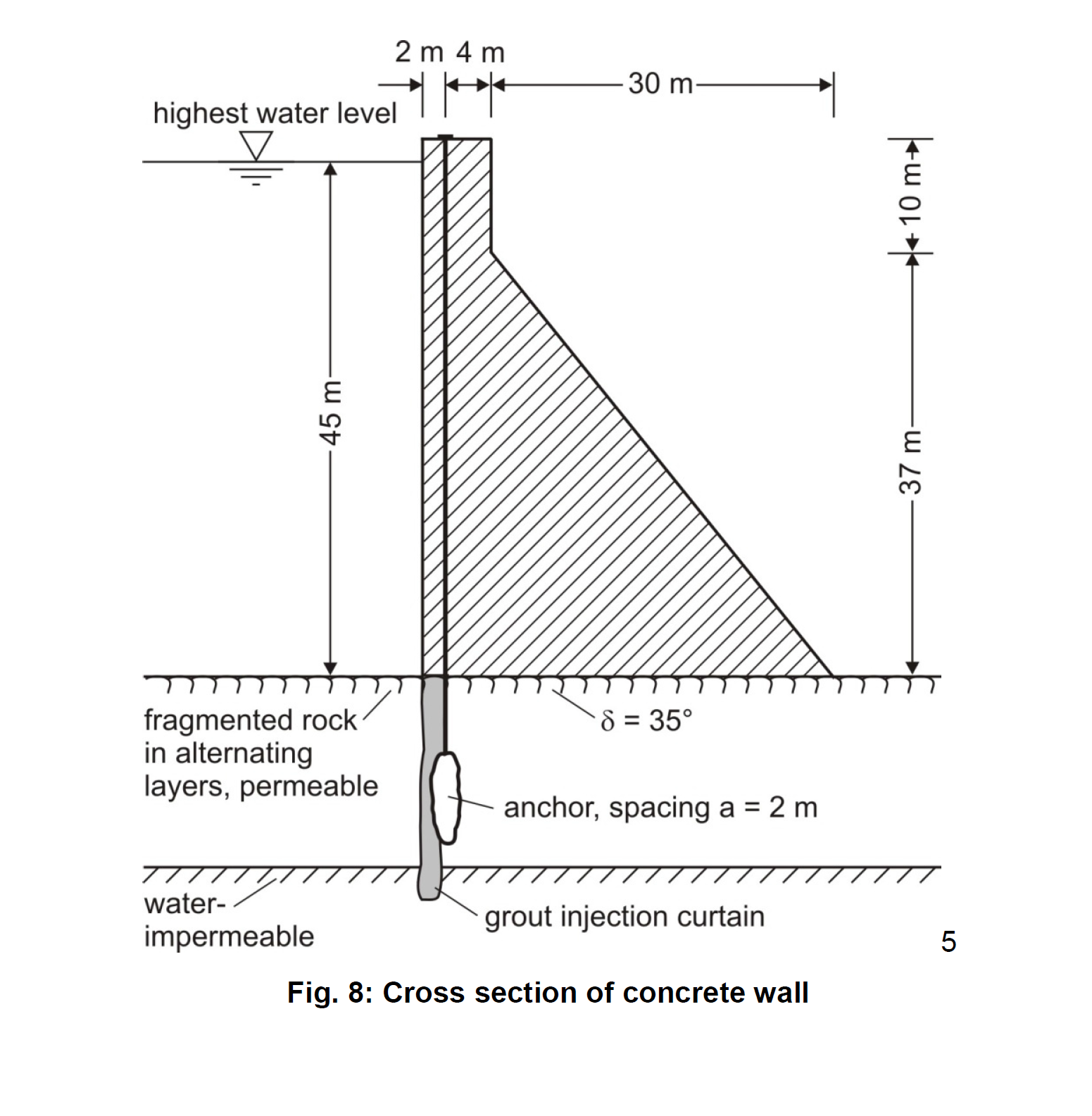

Fig. 8 shows a cross section of a concrete gravity dam. Please check the stability of this dam against sliding, considering the water pressure in the upstream as primary loading.
Calculate the tension force in the anchor [in kN] used to stabilize the dam against sliding for loading Fig. 8: Cross section of concrete wallcase 1? The unit own weight of the concrete dam can be assumed as /`=21/11 kN/m^3.
Safety factors: G =1.35 ; R,h =1.10
Please help me find the solution. Fig. 8 shows a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
