Question: please help me to answer this problem, kindly without using the AI . The figure below shows the input voltage and current waveforms to a

please help me to answer this problem, kindly without using the AI.

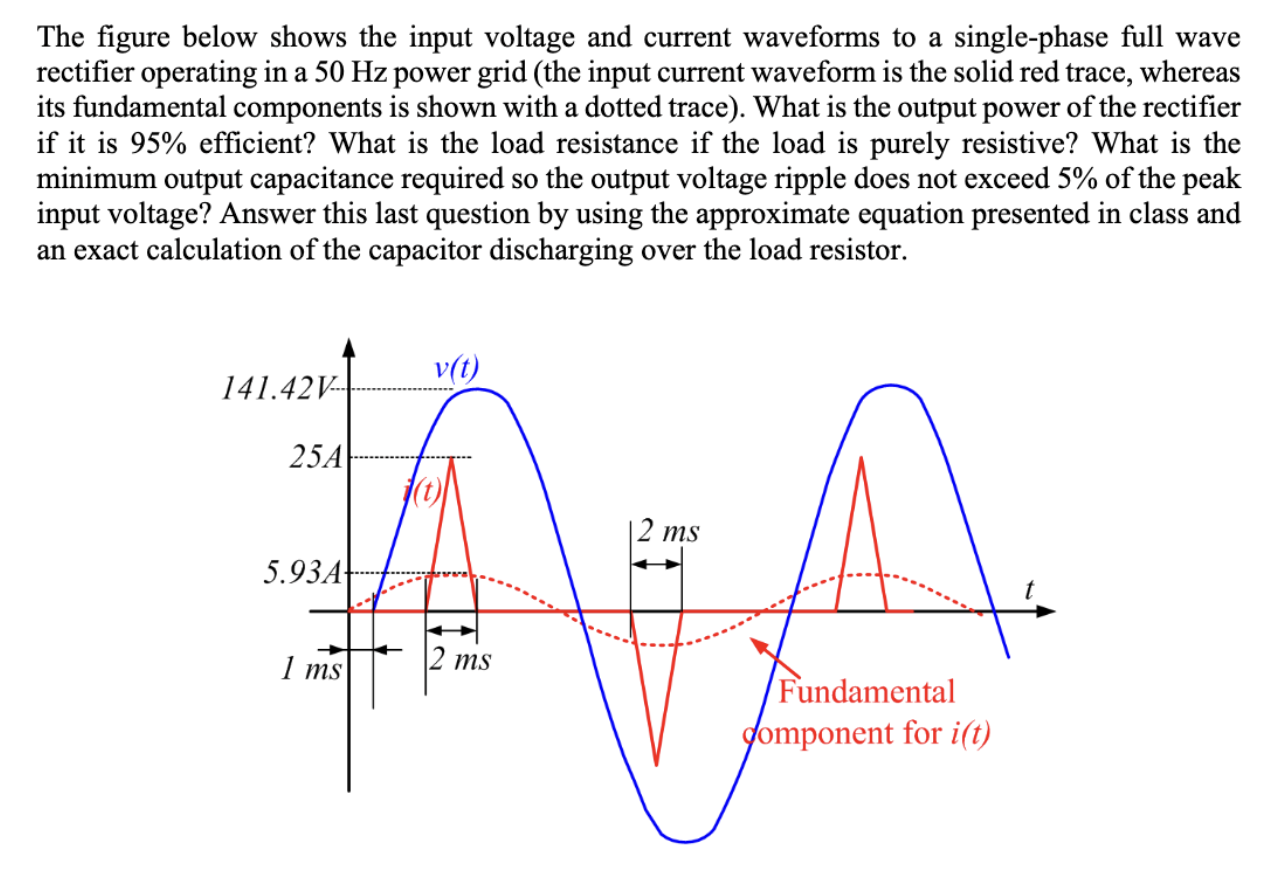

The figure below shows the input voltage and current waveforms to a single-phase full wave rectifier operating in a 50 Hz power grid (the input current waveform is the solid red trace, whereas its fundamental components is shown with a dotted trace). What is the output power of the rectifier if it is \(95\%\) efficient? What is the load resistance if the load is purely resistive? What is the minimum output capacitance required so the output voltage ripple does not exceed \(5\%\) of the peak input voltage? Answer this last question by using the approximate equation presented in class and an exact calculation of the capacitor discharging over the load resistor.
