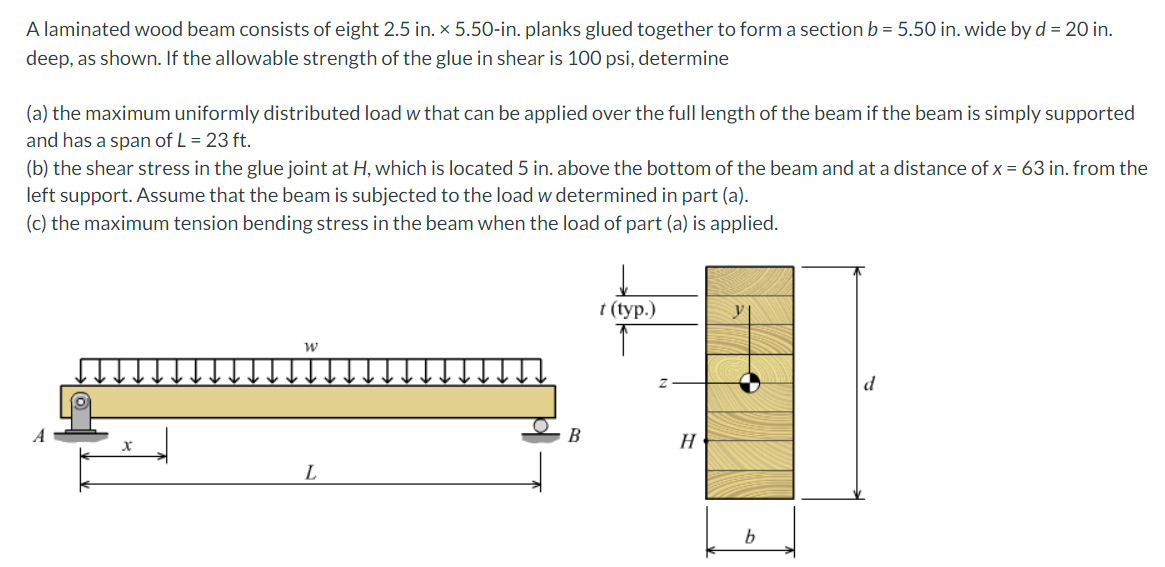

Question: Please Help solve the entire problem step by step with solutions and good explanations! thank you so much! Determine: Part 1 : moment of inertia

Please Help solve the entire problem step by step with solutions and good explanations! thank you so much!
Determine:
Part 1: moment of inertia for the cross-section about the z centroidal axis: I_z in in^4
Part 2: The maximum value of the first moment of the area for the cross-section: Q_max in in^3
part 3: The maximum allowable shear force in beam: V_max in lb
Part 4: Maximum allowable distributed load: W_max in lb/ft
Part 5: Shear force in the beam at x=63. assuming the beam is subjected to the distributed load calculated in part 4: V in lb
Part 6: The first moment of the area H: Q_H in in^3
Part 7: The shear stress at H assuming the beam is subjected to the distributed load W_max calculated in part 4: T_H in psi
Part 8: The maximum moment magnitude at any location in the beam when the beam is subjected to the distributed load W_max calculated in part 4: M_max in lb-ft
Part 9: The maximum tension bending stress at any location in the beam when the beam is subjected to the distributed load W_max calculated in part 4: O_x in psi
Please Help solve the entire problem step by step
