Question: Please help to figure out this problem . A 400 mm radius brake drum contacts a single shoe as shown below and sustains 225 Nm

Please help to figure out this problem .

Please help to figure out this problem . A 400 mm radius

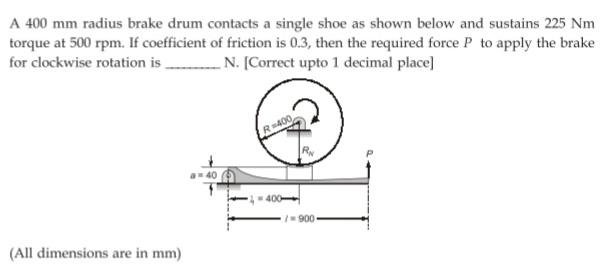

A 400 mm radius brake drum contacts a single shoe as shown below and sustains 225 Nm torque at 500 rpm. If coefficient of friction is 0.3, then the required force P to apply the brake for clockwise rotation is N. (Correct upto 1 decimal place) R2400 RN 40 900 (All dimensions are in mm)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

( i ) 4 0 0 mm radius brake drum contacts a single shoe as shown in Figure 1 in Page 2 and sustains 2 0 0 N - m torque at 5 0 0 rpm . For a coefficient of friction 0 . 2 5 , determine: ( a ) Normal...

6. A 400 mm diameter brake drum contacts with a single shoe as shown in figure below. The brake drum rotates at a speed of 1200 rpm. The coefficient of friction is 0.25. Determine: i) The normal...

Question Flue A 3 5 0 - mm - radius brake drum contacts a single short shoe, as shown in Figure 3 , and sustains 2 2 5 Nm of torque at 5 0 0 rpm . Assume that the coefficient of friction for the drum...
