Please I need drawing Also!!!!

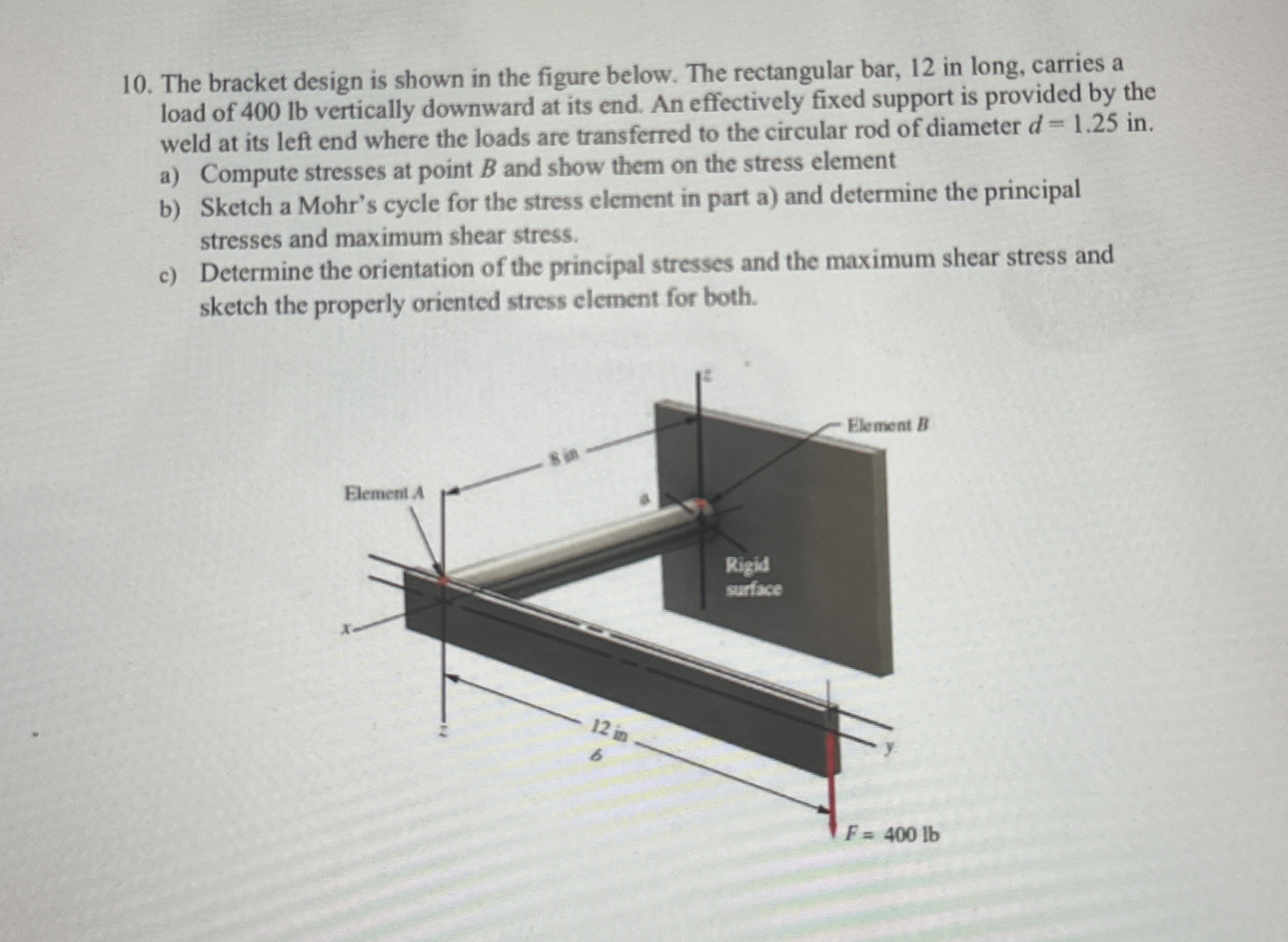

The bracket design is shown in the figure below. The rectangular bar, $12$ in long, carries a

load of $400$ lb vertically downward at its end. An effectively fixed support is provided by the

weld at its left end where the loads are transferred to the circular rod of diameter $d=1\mathrm{.}25in.$

a$)$ Compute stresses at point $B$ and show them on the stress element

b$)$ Sketch a Mohr's cycle for the stress element in part a$)$ and determine the principal

stresses and maximum shear stress.

c$)$ Determine the orientation of the principal stresses and the maximum shear stress and

sketch the properly oriented stress element for both.
