Question: Please I need matlab solution with codes to run and graph. Problem01. A chemical constituent flows between three reservoirs as depicted in the figure. Steady-state
Please I need matlab solution with codes to run and graph.

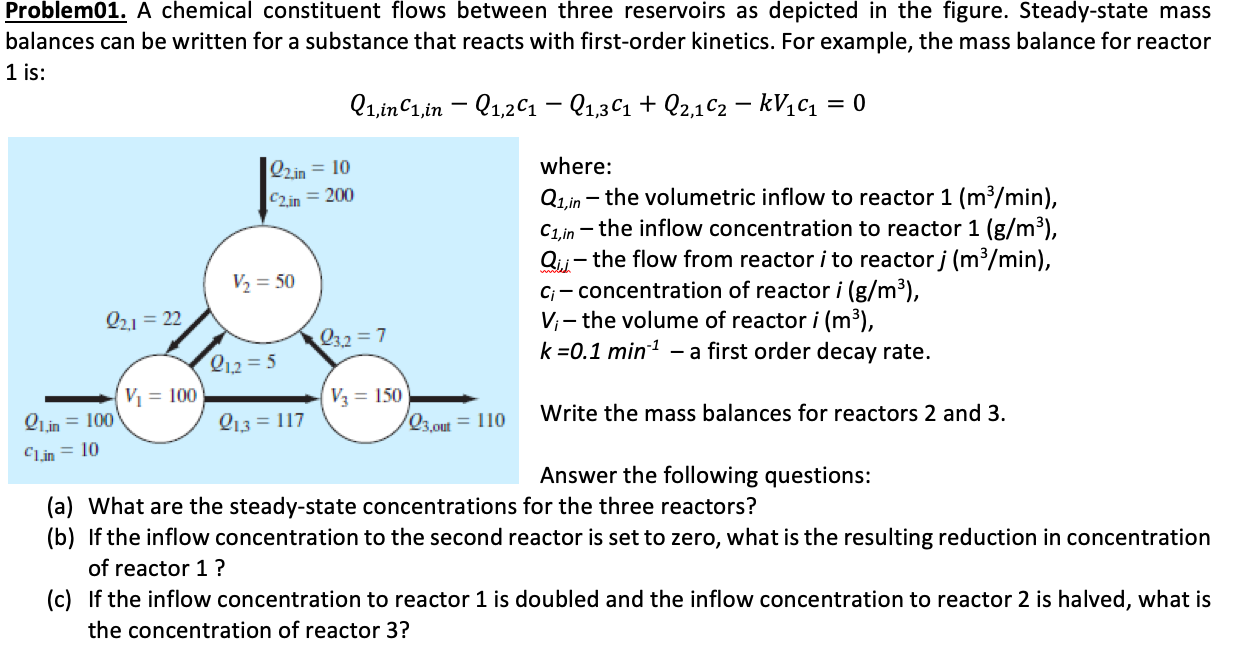

Problem01. A chemical constituent flows between three reservoirs as depicted in the figure. Steady-state mass balances can be written for a substance that reacts with first-order kinetics. For example, the mass balance for reactor 1 is: (1,inC1,in Q1,261 21,3C1 + Q2,1C2 kV_c1 = 0 = Q2.in = 10 C2.in = 200 where: Q1, in - the volumetric inflow to reactor 1 (m3/min), C1,in the inflow concentration to reactor 1 (g/m3), Qij - the flow from reactor i to reactor j (m3/min), c; - concentration of reactor i (g/m), V; - the volume of reactor i (m), k=0.1 min-1 - a first order decay rate. V2 = 50 Q2.1 = 22 Qu2 = 7 0,2 = 5 Vi = 100 913 = 117 Quin = 100 Vz = 150 Q3.out= 110 Write the mass balances for reactors 2 and 3. in = 10 Answer the following questions: (a) What are the steady-state concentrations for the three reactors? (b) If the inflow concentration to the second reactor is set to zero, what is the resulting reduction in concentration of reactor 1 ? (c) If the inflow concentration to reactor 1 is doubled and the inflow concentration to reactor 2 is halved, what is the concentration of reactor 3
