Question: please help with matlab solution. The stress fields near a crack tip of a linear elastic isotropic material for mode II loading are given by:

please help with matlab solution.

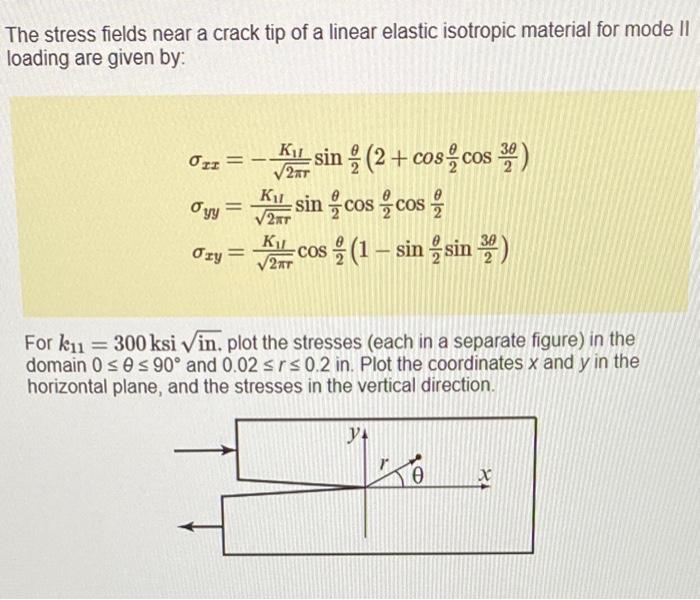

The stress fields near a crack tip of a linear elastic isotropic material for mode II loading are given by: xx=2rK1Isin2(2+cos2cos23)yy=2rK1sin2cos2cos2xy=2rK1cos2(1sin2sin23) For k11=300ksiin. plot the stresses (each in a separate figure) in the domain 090 and 0.02r0.2 in. Plot the coordinates x and y in the horizontal plane, and the stresses in the vertical direction

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
