Question: PLEASE I WANT THIS WITH THE PSIM SIMULATION AND HOW I FOUND VREF, Vc IN PSIM PLEASE I WANT THIS WITH THE PSIM SIMULATION AND

PLEASE I WANT THIS WITH THE PSIM SIMULATION AND HOW I FOUND VREF, Vc IN PSIM

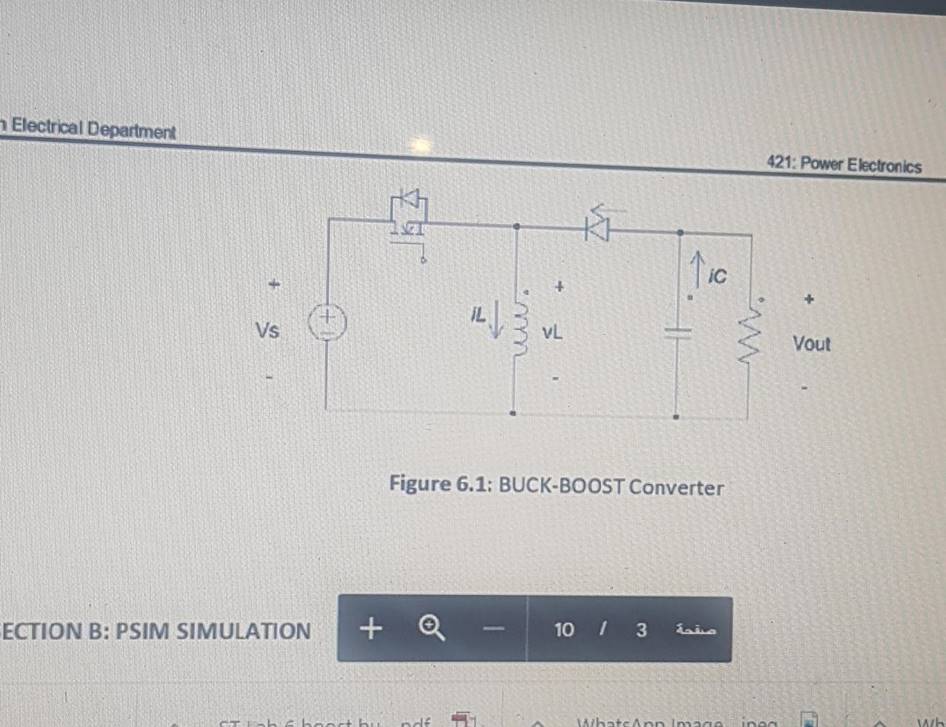

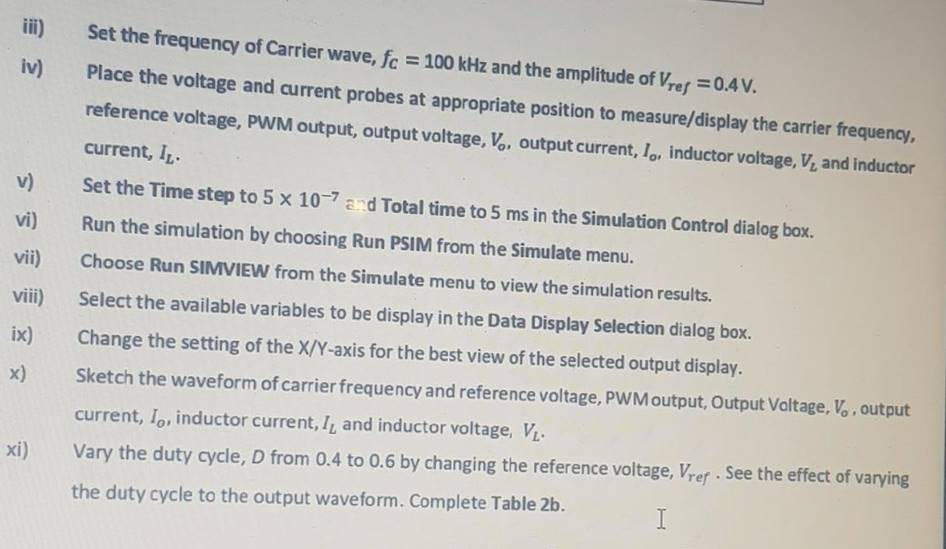

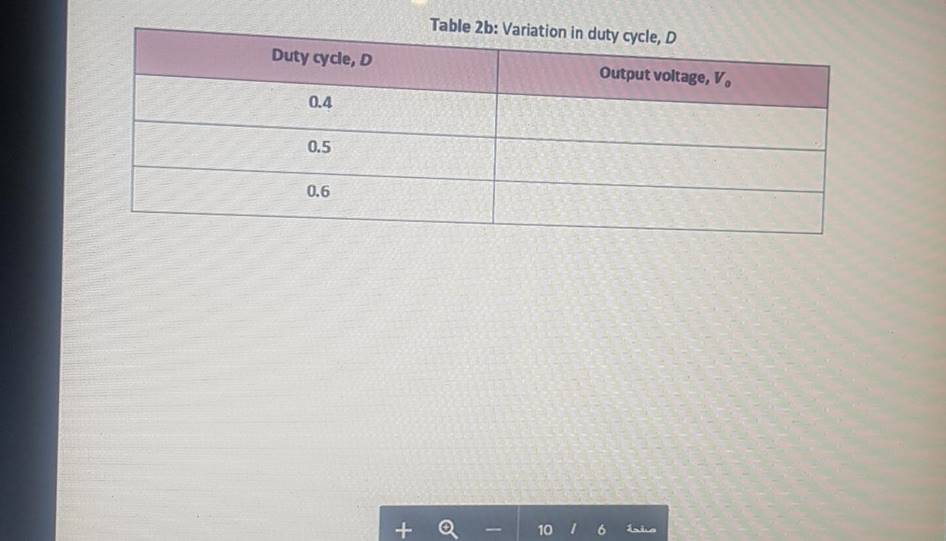

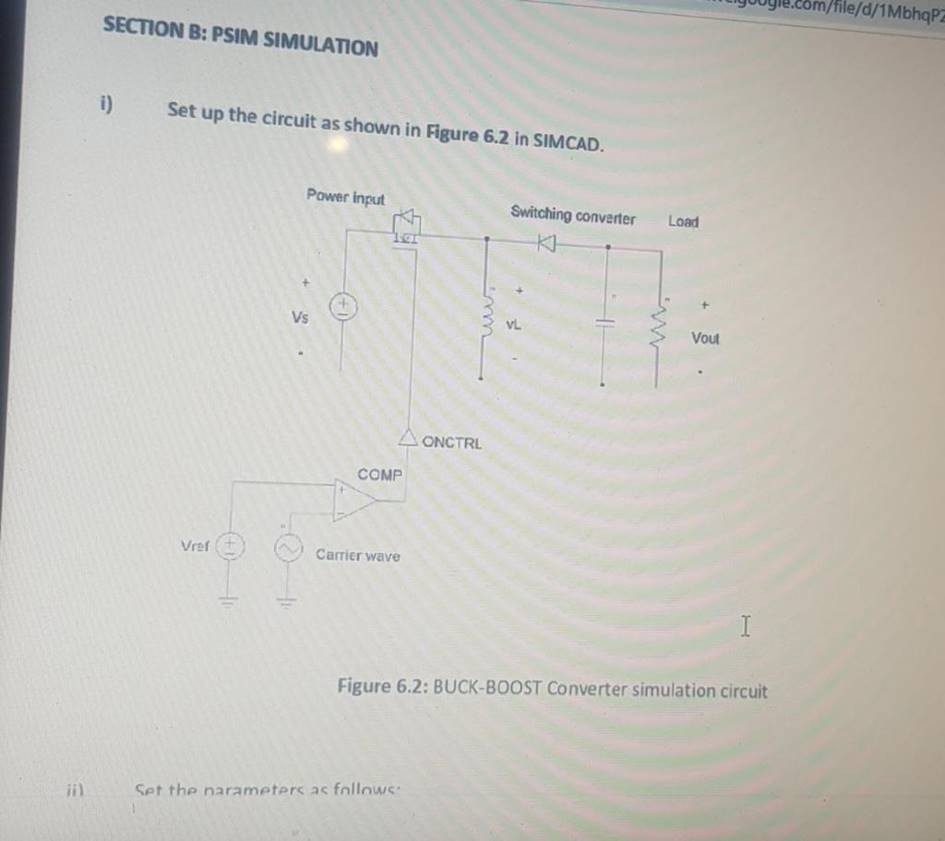

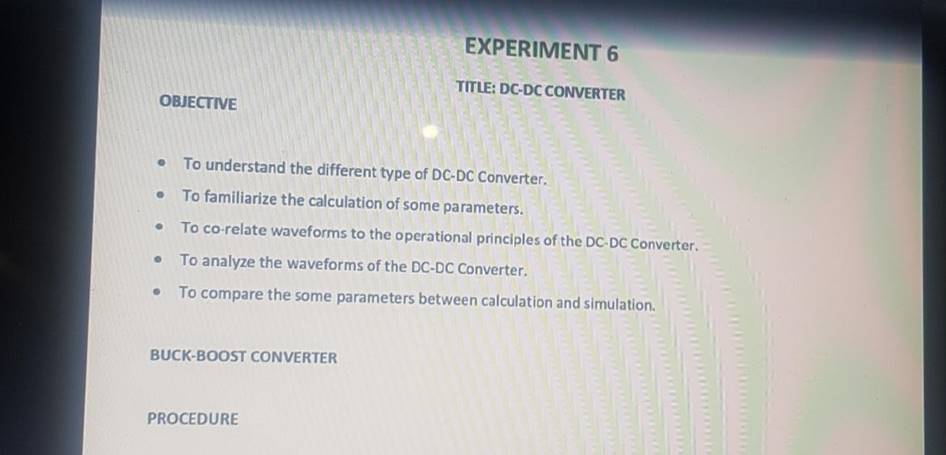

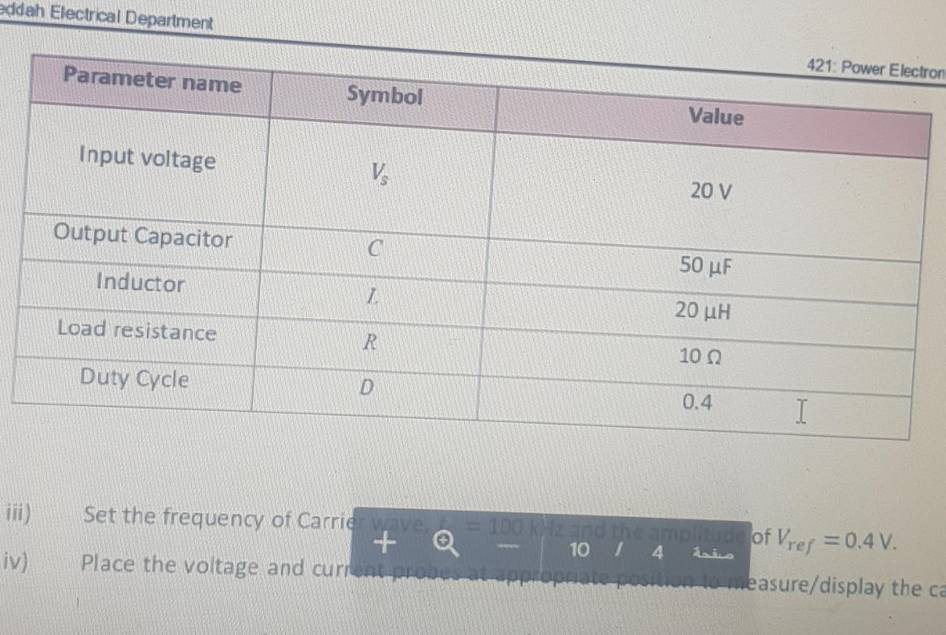

OBJECTIVE EXPERIMENT 6 TITLE: DC-DC CONVERTER . To understand the different type of DC-DC Converter. To familiarize the calculation of some parameters. To co-relate waveforms to the operational principles of the DC-DC Converter. To analyze the waveforms of the DC-DC Converter. To compare the some parameters between calculation and simulation. BUCK-BOOST CONVERTER PROCEDURE image text in transcribed
