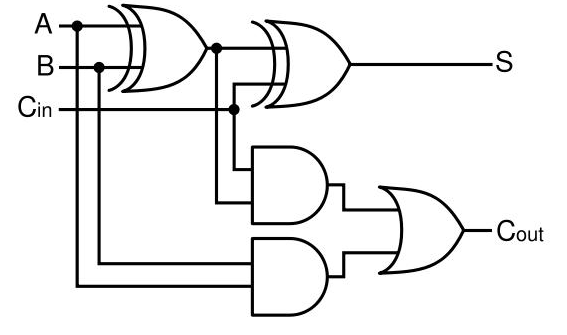

Please implement the truth table which corresponds to the following logic circuit diagram:

A, B, and Cin are the input lines and S and Cout are the output lines. Your truth table should have all possible combinations for input as well as what results each combination will produce. To get you started, here is one way to set up the table:

A B Cin | S Cout

0 0 0 | ? ?

0 0 1 | ? ?

0 1 0 | ? ?

0 1 1 | ? ?

1 0 0 | ? ?

1 0 1 | ? ?

1 1 0 | ? ?

1 1 1 | ? ?

You just have to replace the question marks with 0's and 1's depending on the result.

Cin [ Cout S AB in
