Question: PLEASE INCLUDE ALL PROCEDURE a . Employ superposition to determine the current labelled i in the circuit of Fig . 1 . Express the contribution

PLEASE INCLUDE ALL PROCEDURE a. Employ superposition to determine the current labelled i in the circuit of Fig.1. Express the contribution the 2 V source makes to the total current i in terms of a percentage. Changing only the value of the 6 A source, adjust the circuit of Fig. 1 so that the two sources contribute equally to the current i. Explain your answer and the adjustments you made using convincing arguments. Finally, write a short paragraph explaining in which occasions (circuits) the use of the superposition technique is more recommended, compared to other techniques.

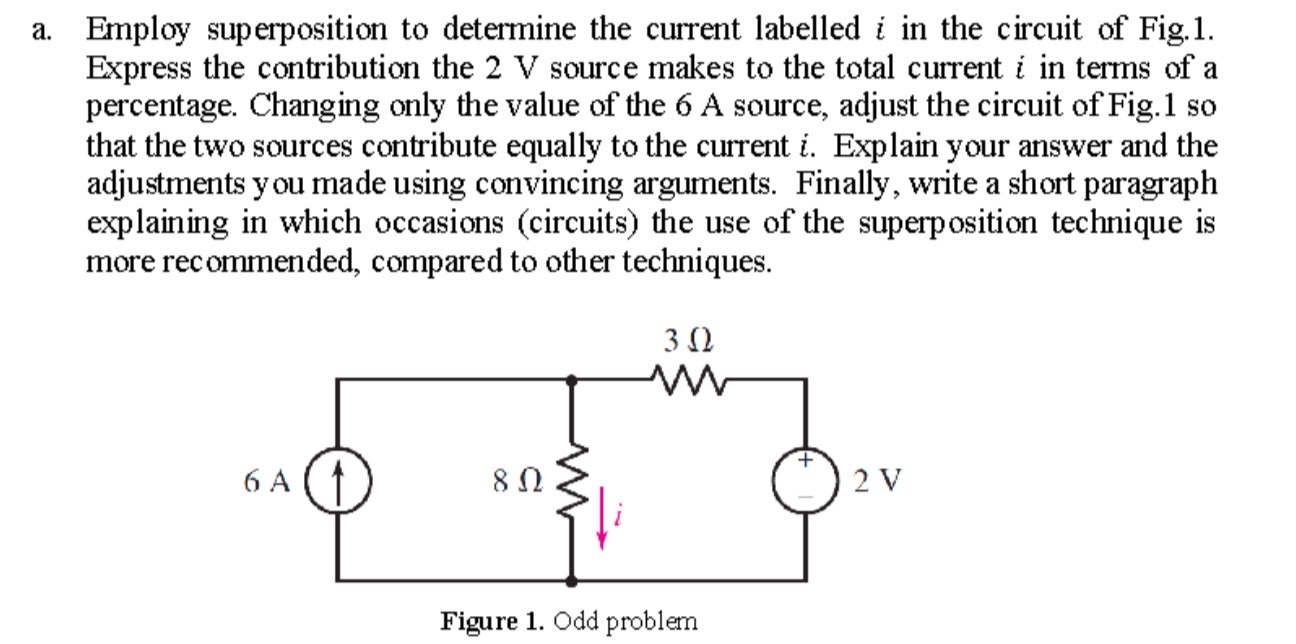

Figure 1. Odd problem
