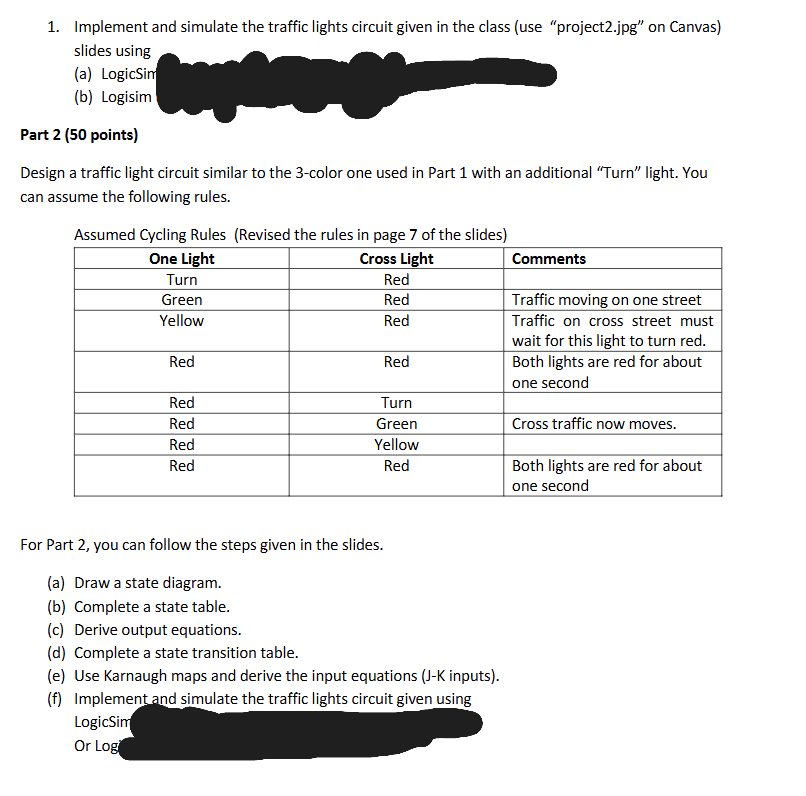

please make the circuit using logicsim or logisim

$1.$ Implement and simulate the traffic lights circuit given in the class $($use "project$2.$jpg$"$ on Canvas$)$ slid

$($a$)$

$($b$)$

Part $2(50$

Design a traffic light circuit similar to the $3-$color one used in Part $1$ with an additional "Turn" light. You can assume the following rules.

Assumed Cycling Rules $($Revised the rules in page $7$ of the slides$)$

$\backslash$begin$\{$tabular$\}\{|$c$|$c$|$l$|\}$

$\backslash$hline One Light & Cross Light & Comments $\backslash \backslash$

$\backslash$hline Turn & Red & $\backslash \backslash$

$\backslash$hline Green & Red & Traffic moving on one street $\backslash \backslash$

$\backslash$hline Yellow & Red & $\backslash$begin$\{$tabular$\}\{$l$\}$

Traffic on cross street must $\backslash \backslash$

wait for this light to turn red.

$\backslash$end$\{$tabular$\}\backslash \backslash$

$\backslash$hline Red & Red & $\backslash$begin$\{$tabular$\}\{$l$\}$

Both lights are red for about $\backslash \backslash$

one second

$\backslash$end$\{$tabular$\}\backslash \backslash$

$\backslash$hline Red & Turn & $\backslash \backslash$

$\backslash$hline Red & Green & Cross traffic now moves. $\backslash \backslash$

$\backslash$hline Red & Yellow & $\backslash \backslash$

$\backslash$hline Red & Red & $\backslash$begin$\{$tabular$\}\{$l$\}$

Both lights are red for about $\backslash \backslash$

one second

$\backslash$end$\{$tabular$\}\backslash \backslash$

$\backslash$hline

$\backslash$end$\{$tabular$\}$

For Part $2,$ you can follow the steps given in the slides.

$($a$)$ Draw a state diagram.

$($b$)$ Complete a state table.

$($c$)$ Derive output equations.

$($d$)$ Complete a state transition table.

$($e$)$ Use Karnaugh maps and derive the input equations $($J$-$K inputs$).$

$($f$)$ Implement and simulate the traffic lights circuit given using

LogicSim

Or Log
